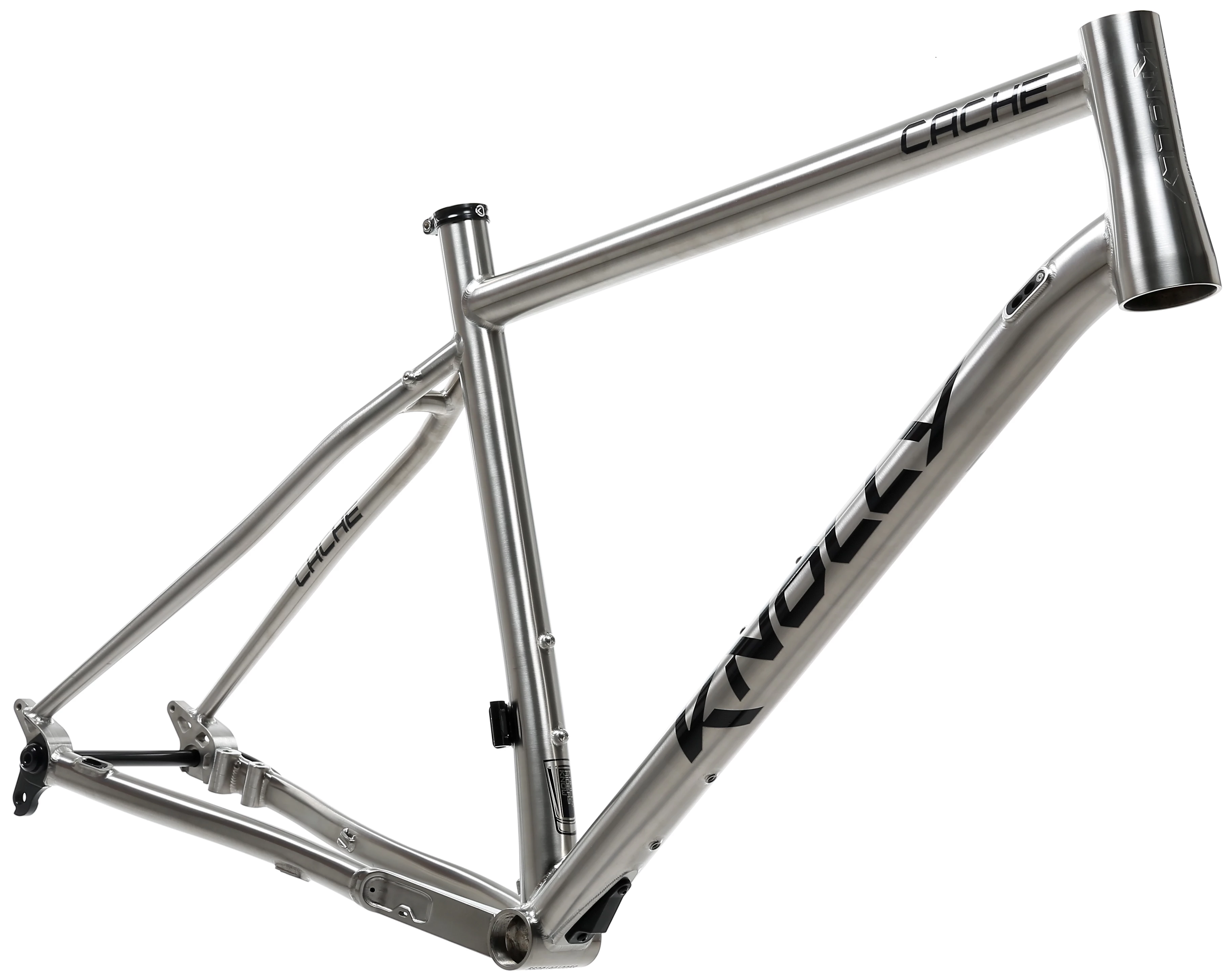

Cache Titanium
The Knolly Cache Titanium is our premium gravel offering. A custom designed gravel bike with a longer front center (like our off-road models) which combined with a shorter stem, gives this bike amazing handling qualities whether you’re riding singletrack or long gravel roads. NEW REVISIONS include a new carbon fork, increased tire clearance (up to 50c tires) and a 1by drivetrain option.
Complete bikes ship unassembled & require a full build. Spec is subject to change without notice. If you have any questions, contact us at info@knollybikes.com.

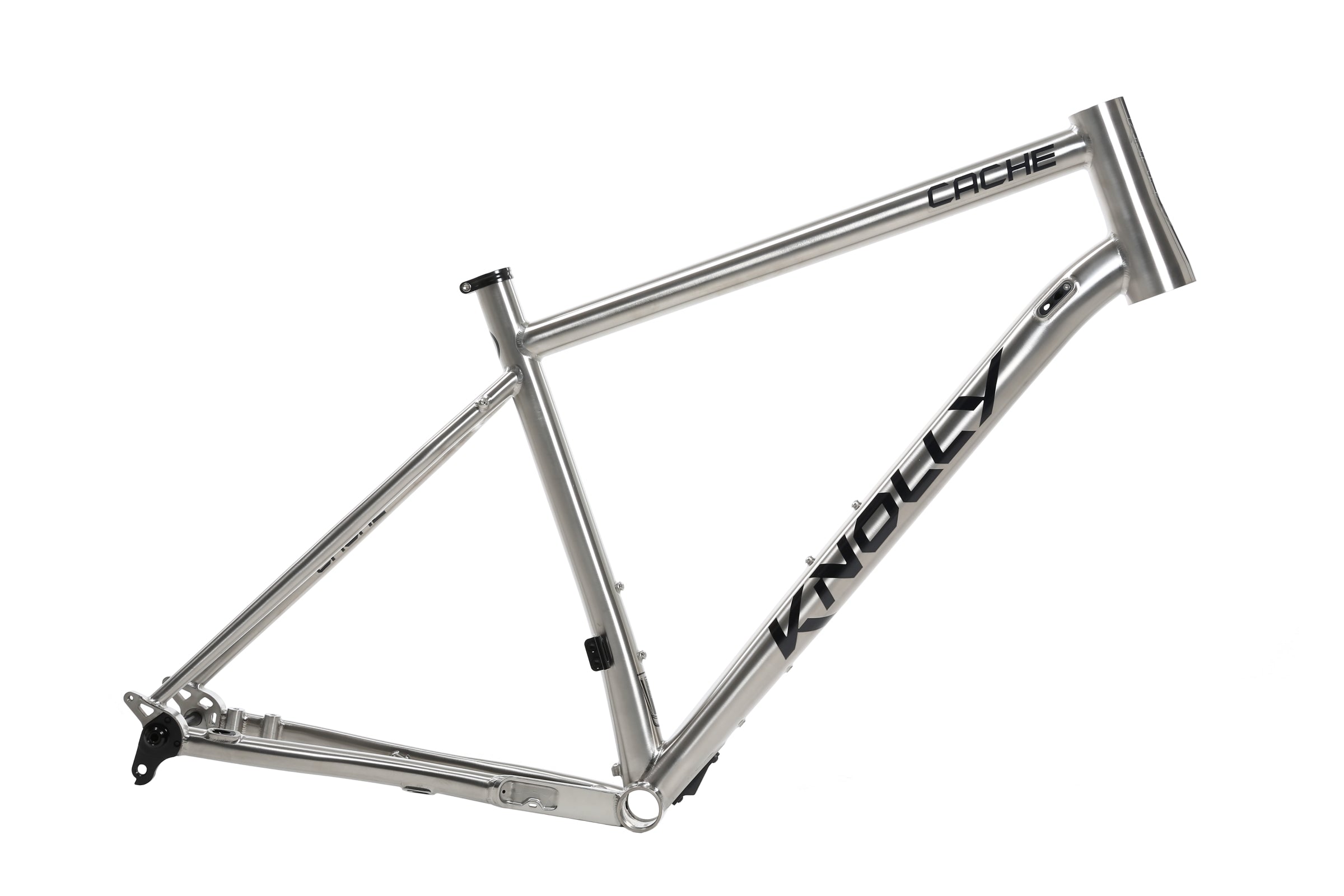

Titanium
We use titanium because of its premium ride quality, anti-corrosion resistant characteristics and unlimited fatigue cycle. And our supplier is the best in the industry, enabling them to create the precise tooling required, so that they can produce the custom tubing we need for these models.

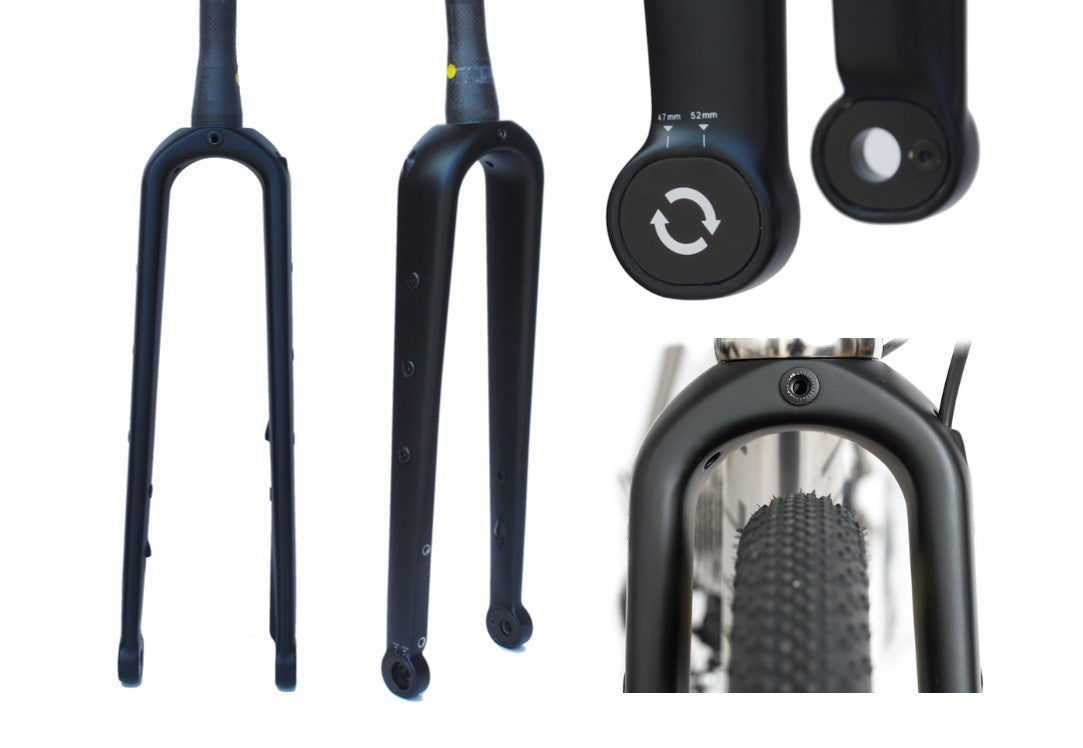

Carbon fork
A new carbon adventure fork, with added tire clearance for 700*55c (650*2.4"), triple cage mounts for fenders and panniers, 398mm Axel to Crown and an adjustable offset of 47mm or 52mm.
Custom tubing
We feature custom tubing throughout this model so that the bike balances the perfect level of stiffness and comfort for any all mountain adventure. And each frame size features the appropriate tube diameter for that particular size, which allows us to tailor the stiffness from our smallest to largest sized frames.
Progressive geometry
Utilizing our mountain bike expertise, we wanted to offer a bike that felt comfortable on both short and long-haul rides, as well as multi-surface terrains. We designed the Cache with a longer front center and a shorter stem to ensure it had optimal handling to expertly manage technical corners, while still being predictable, stable and comfortable on epic adventure rides.
Human Centric Sizing
We have always believed in human centric sizing and design our bikes to deliver optimal reach, standover height and geometry for a broad range of riders.
Sizing
| 49.5 | 152cm - 157cm |
|---|---|
| 52 | 157cm - 162cm |
| 54 | 165cm - 170cm |
| 56 | 172cm - 177cm |
| 58 | 180cm - 185cm |
| 60 | 185cm - 187cm |
| 62.5 | 190cm - 195cm |

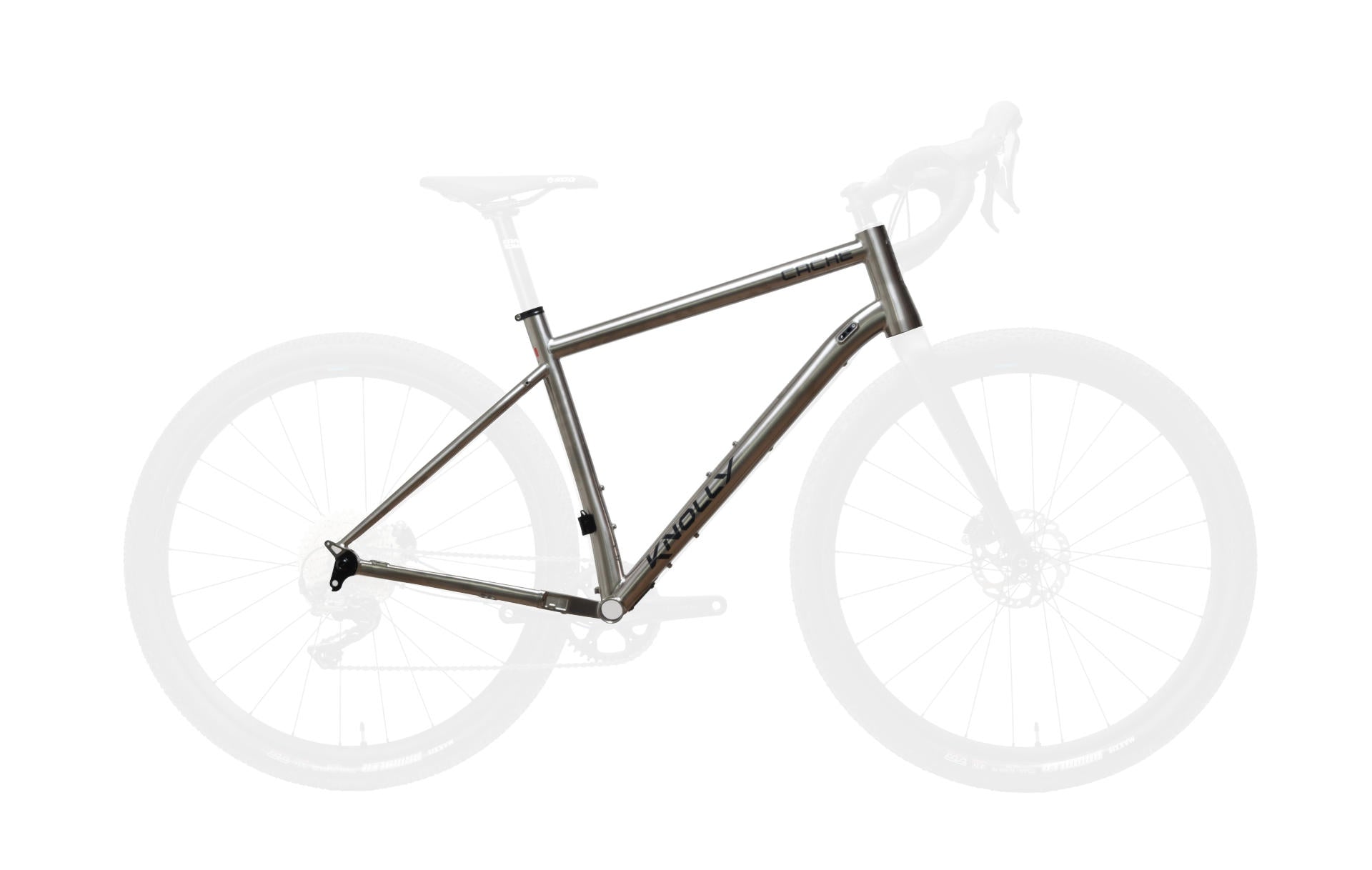

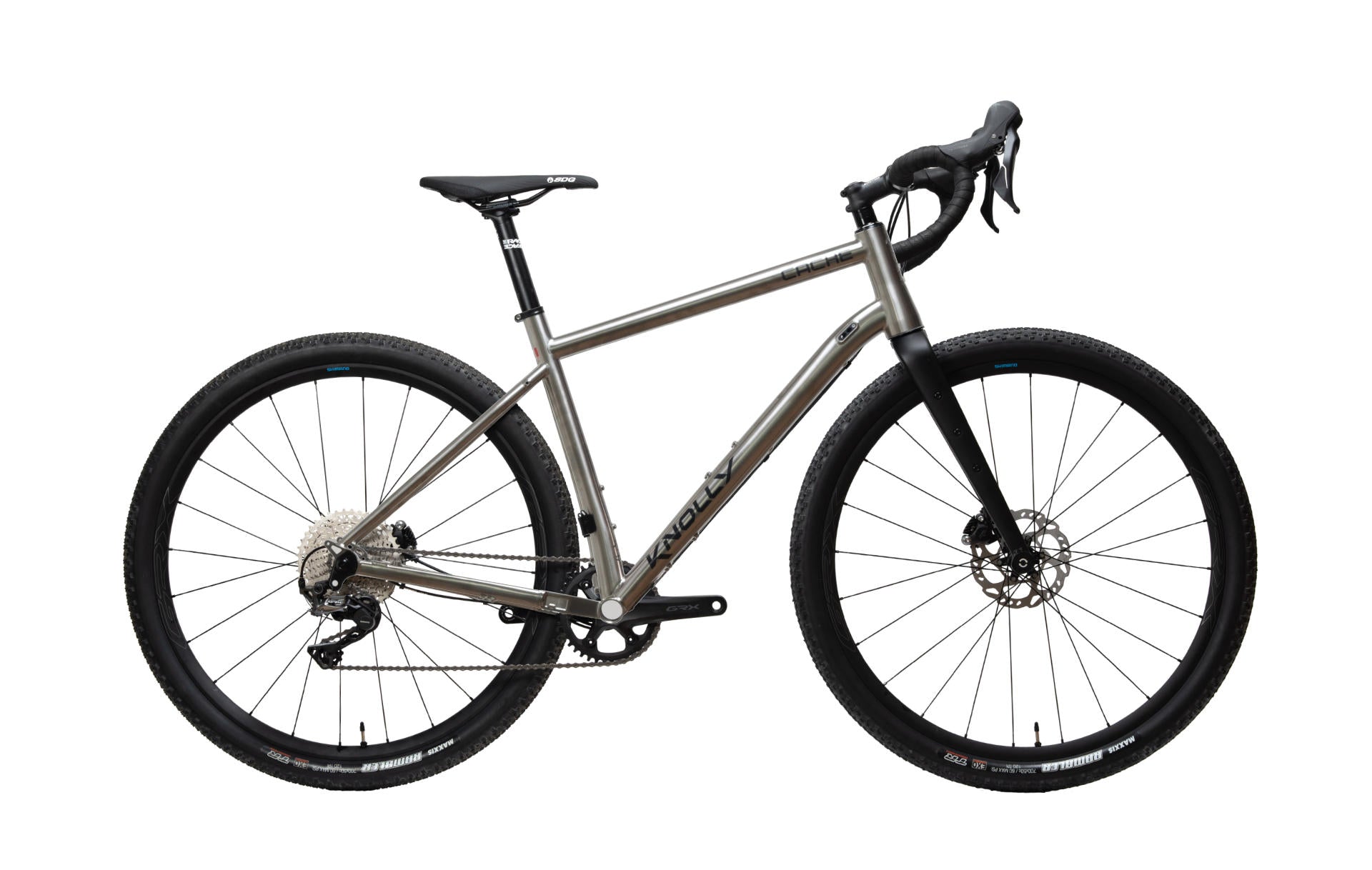

Geometry
| 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | |
|---|---|---|---|---|---|---|---|
| Reach | 385mm | 393mm | 401mm | 409mm | 417mm | 425mm | 438mm |
| Stack | 558.5mm | 572.7mm | 588mm | 602mm | 616.5mm | 630.5mm | 644.5mm |
| Head angle | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º |
| Head tube length | 128mm | 143mm | 157mm | 172mm | 187mm | 202mm | 217mm |
| Effective top tube length | 545.5mm | 557.5mm | 569.5mm | 581.5mm | 593.5mm | 606mm | 622mm |
| Effective seat tube angle | 74º | 74º | 74º | 74º | 74º | 74º | 74º |
| Seat tube length | 410mm | 438mm | 464mm | 492mm | 520mm | 548mm | 576mm |
| Seat tube angle (Actual) | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º |
| Stand over height | 719mm | 735mm | 751mm | 772mm | 786mm | 810mm | 824mm |
| Chainstay length | 422mm | 422mm | 422mm | 422mm | 422mm | 422mm | 422mm |
| Wheelbase Length | 1022.5mm | 1035.5mm | 1043.5mm | 1056.5mm | 1069.5mm | 1082.5mm | 1100mm |
| BB height (40mm tire) | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm |
Check out the Dropper Post Calculator and other helpful resources on our Service page.
Specs
| BB size | 68mm threaded |
|---|---|
| Seat post diameter | 31.6mm |
| Front derailleur mounting | Braze-on type |
| Rear hub spacing | 142 x 12mm |
| Tire clearance | 700c x 50mm or 650b (27.5") x 2.1" |
| Headset | 44mm upper & 56mm lower (same as our MTB frames) |
| Fork AC length (fork) | 402mm (397mm Fork + 5mm Headset) |
| Fork offset | 47mm / 52mm - Adjustable |
| Fork steerer | 1.5 Taper |
| Fork steerer length | 300mm |
| Fork disc brake | Flatmount w/ internal routing |
| Fork hub | 100 x 12mm Thru Axle |
| Fork tire clearance | 700c x 55mm or 650b (27.5") x 2.4" |
| Fork fender mounts | M6 front of crown mounts and triple fender/rack/cage mounts |
| Fork weight | 465g with Thru Axle |

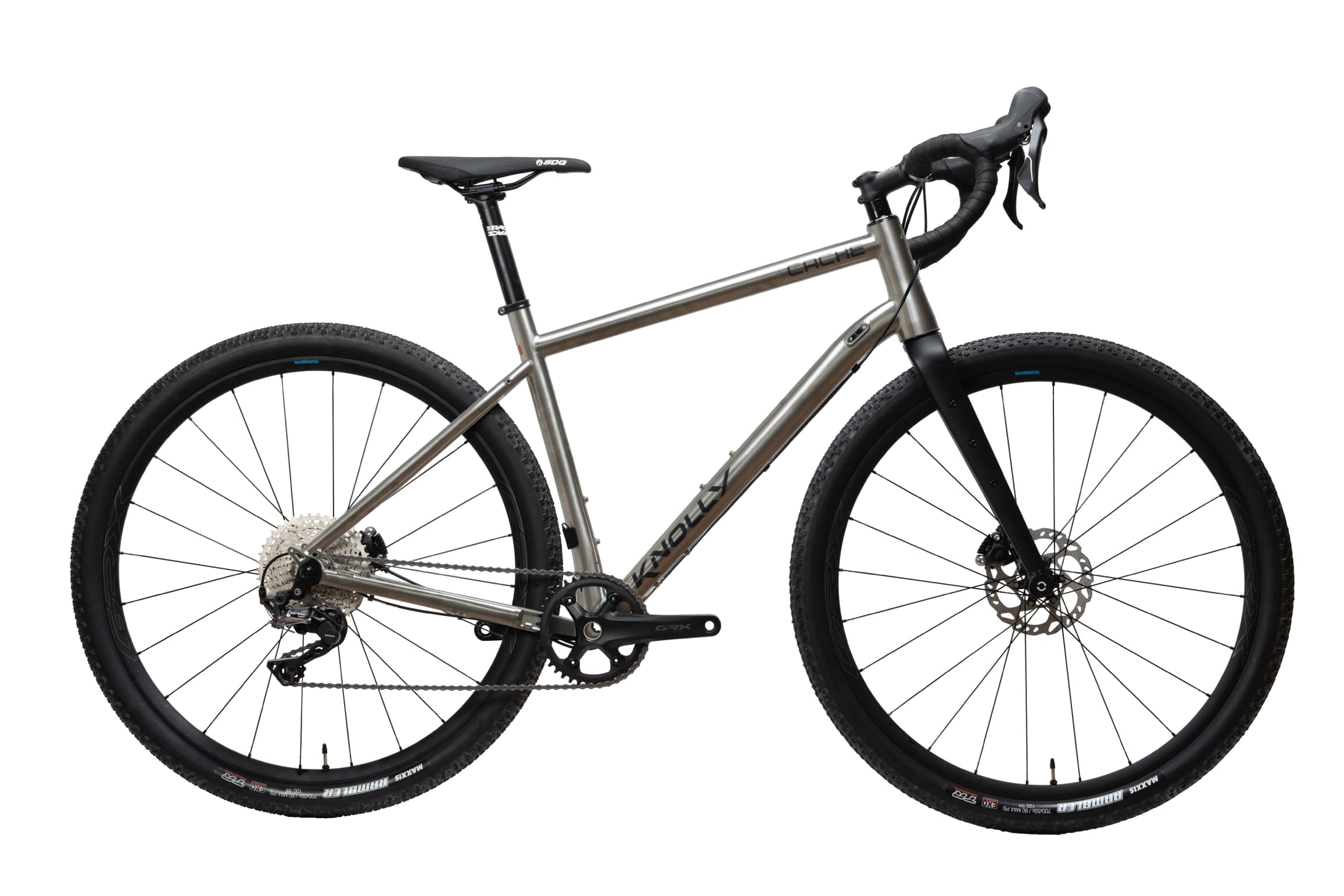

Build kits
| Shimano GRX 600 1X | Shimano GRX 600 2X | |
|---|---|---|
| Fork | Carbon Adventure 700x55c / 650b x 2.4, Offset: 47mm / 52mm - Adjustable, triple fender/rack/cage mounts, M6 front of crown mount, internal dynamo routing, 398 axle to crown, 12x100mm | Carbon Adventure 700x55c / 650b x 2.4, Offset: 47mm / 52mm - Adjustable, triple fender/rack/cage mounts, M6 front of crown mount, internal dynamo routing, 398 axle to crown, 12x100mm |
| Headset | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 |
| Stem | Easton EA50 AX 31.8 (60-80cm) | Easton EA50 AX 31.8 (60-80cm) |
| Handlebars | Easton EA50 AX 31.8 (42-46cm) | Easton EA50 AX 31.8 (42-46cm) |
| Grips | Easton Bar Tape Pinline Logo Black | Easton Bar Tape Pinline Logo Black |
| Brakes | Shimano GRX 600 | Shimano GRX 600 |
| Rotors | Shimano SM-RT70 160/160mm (Centerlock) | Shimano SM-RT70 160/160mm (Centerlock) |
| Shifter | Shimano GRX 600 Flat Mount Brakes | Shimano GRX 600 Flat Mount Brakes |
| Seat post | RaceFace Ride XC 31.6x375mm | RaceFace Ride XC 31.6x375mm |
| Seat collar | Knolly | Knolly |
| Saddle | SDG Duster P | SDG Duster P |
| Crankset | Shimano GRX 600 40T, 170mm | Shimano GRX 600 46-30T, 172.5mm |
| Bottom bracket | Shimano 68mm BSA | Shimano 68mm BSA |
| Front derailleur | - | Shimano GRX 810 2x11spd (Braze-On Front) |
| Rear derailleur | Shimano GRX 812 1x11spd, Shadow Plus | Shimano GRX 810 2x11spd, Shadow Plus |
| Cassette | Shimano Deore M5100 11spd, 11-42T | Shimano 105 HG700 11spd, 11-34T |
| Chain | Shimano HG601 11spd | Shimano HG601 11spd |
| Wheelset | DT Swiss G1800 SPLINE DB 25 24h 12x100 / 12x142 | DT Swiss G1800 SPLINE DB 25 24h 12x100 / 12x142 |
| Front tire | Maxxis Ravager EXO 700x40c | Maxxis Ravager EXO 700x40c |
| Rear tire | Maxxis Rambler EXO 700x40c | Maxxis Rambler EXO 700x40c |
