Fugitive 125 S3 | Shimano XT | Dad Jean Blue
$4,799.00 CAD
$6,859.00 CAD

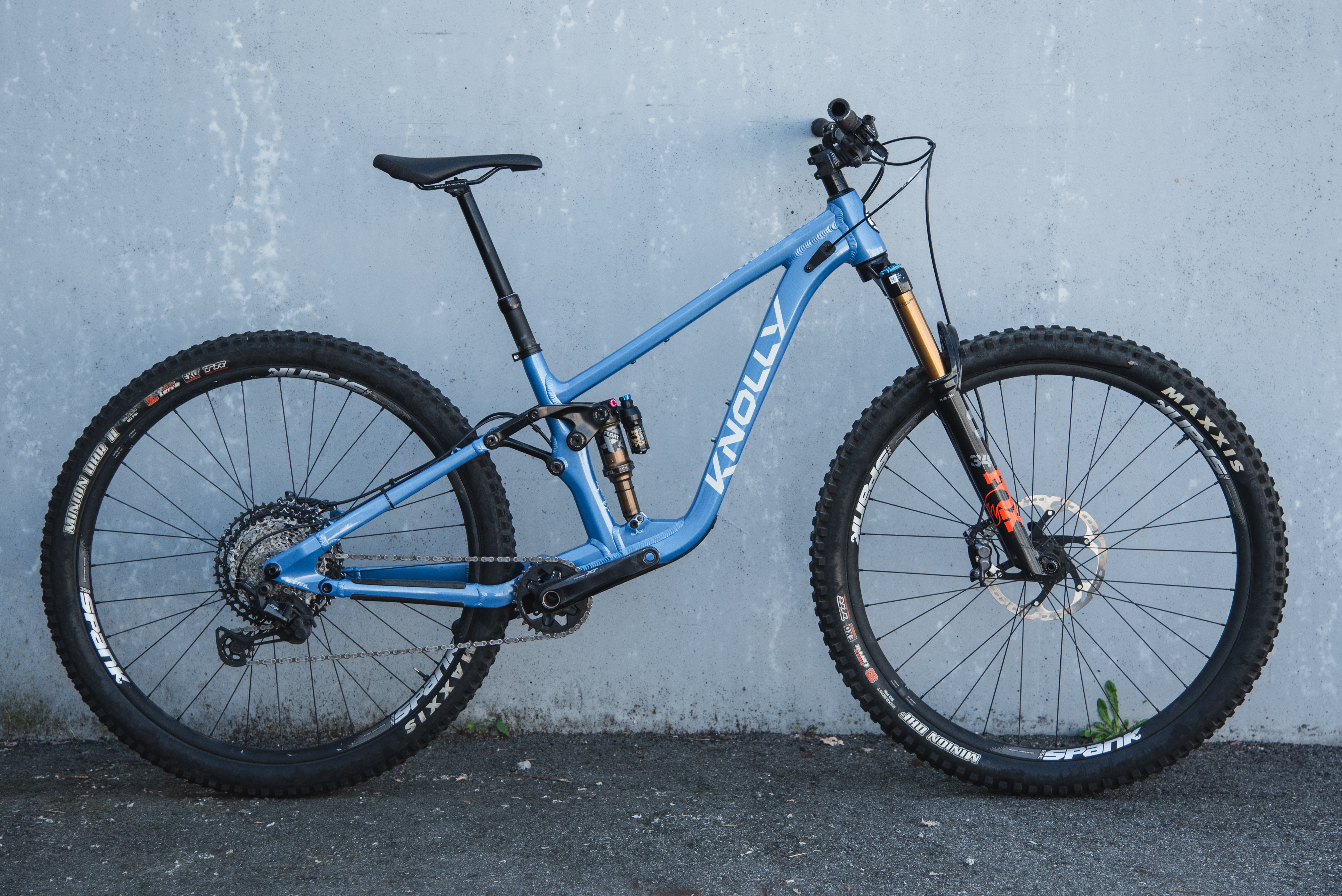

Lightly ridden demo Fugitive 125 complete.
- Shimano XT 12-speed groupset, with Fox 34 140 29" fork, Float X 185x50 shock.
- XT 8120 brakeset.
- Spank 345 wheelset.
- Cockpit includes Aeffect 50mm Stem, Spank Oozy handlebar, and SDG Bel-Air saddle.

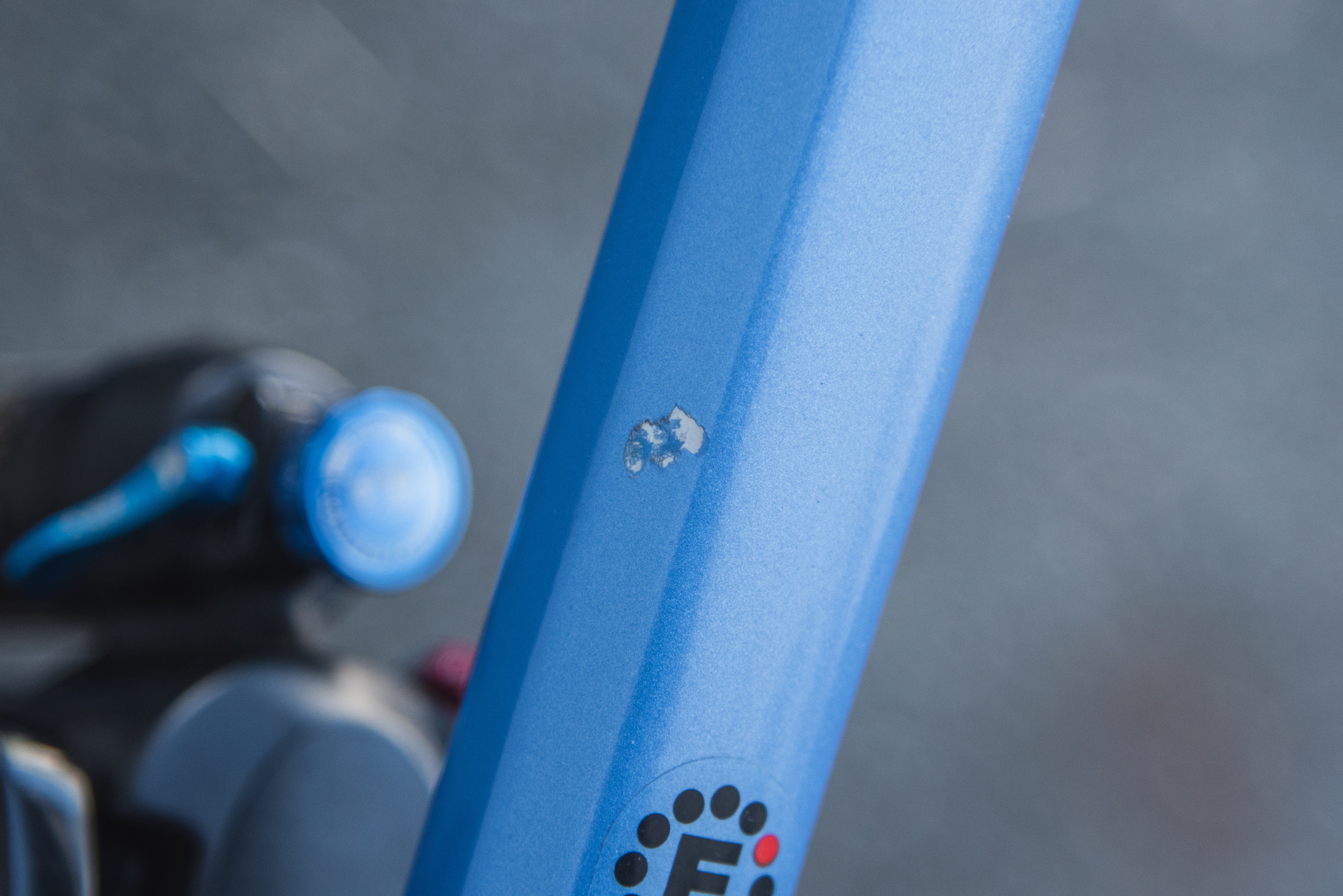

NOTE - There is a small paint chip near the base of the top tube, left side. Shown in photo.
Bike is fully assembled. No shipping option for this item - local pickup only.
Sizing
| S (S2) | 160cm - 170cm |
|---|---|
| M (S3) | 170cm - 180cm |
| L (S4) | 180cm - 190cm |
| XL (S5) | 190cm - 200cm |
Geometry
| S2 - Small | S3 - Medium | S4 - Large | S5 - X-Large | |
|---|---|---|---|---|
| Reach | 443mm | 470mm | 495mm | 520mm |
| Stack | 625mm | 625mm | 631mm | 640mm |
| Head tube length | 108mm | 108mm | 115mm | 125mm |
| Effective Top Tube Length | 588mm | 615mm | 642mm | 669mm |
| Actual Top Tube Length | 587mm | 605mm | 627mm | 651mm |
| Seat tube length | 350mm | 390mm | 440mm | 490mm |
| Seat tube max insertion depth | 260mm | 300mm | 350mm | 400mm |
| Theoretical saddle height (from BB axis) | 700mm | 750mm | 800mm | 850mm |
| Seat tube angle (actual) | 68º | 68.5º | 69.25º | 71º |
| Stand over height | 701mm | 716mm | 726mm | 748mm |
| Chainstay length | 430mm | 434mm | 438mm | 442mm |
| Wheelbase length | 1184mm | 1215mm | 1247mm | 1280mm |
| Neutral | Slack | |
|---|---|---|
| Head angle | 66º | 65.25º |
| Effective seat tube angle | 77.25º | 76.5º |
| BB height | 334mm | 324mm |
| BB drop | 35mm | 45mm |
Specs
| 125 | 140 | |
|---|---|---|
| Fork A/C length | 554mm (140mm inc. headset) | 565mm (150mm inc. headset) |
| Intended use | 29er | 29er |
| Fork travel compatibility | 140mm Nominal 29" | 150mm Nominal 29" |
| Fork travel | Min / Max: 140-160mm | Min / Max: 140-160mm |
| Rear travel | 125mm | 140mm |
| Rear wheel size and recommended max tire width | 29" x 2.6" | 29" x 2.6" |
| Dropout/Hub spec | 12 x 157mm | 12 x 157mm |
| Shock hardware | M8x30mm lower | M8x30mm lower |
| Seat post diameter | 31.6mm | 31.6mm |
| Seat post inner depth | 300mm+ | 300mm+ |
| Dropper post range | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) |
| Headset | ZS 44mm upper & ZS 56mm lower | ZS 44mm upper & ZS 56mm lower |
| Post collar | 35mm | 35mm |
| Frame material | 6066 Aluminum | 6066 Aluminum |
| Internal cable routing | Yes | Yes |
| Chainguide mount | ISCG-05 (removable) | ISCG-05 (removable) |
| BB shell spec | 73mm BSA threaded | 73mm BSA threaded |
| Chainline | 54-57 with 55-56.5mm optimal | 54-57 with 55-56.5mm optimal |
| Rear brake tabs | Post mount 180mm | Post mount 180mm |
| Two geo settings | Yes | Yes |
| Bottle mounts | Yes | Yes |
| Tool mounts | Yes | Yes |
Build kits
| XT | |
|---|---|
| Fork | Fox 36 SL Factory 29" 140mm, 44mm Rake |
| Shock | Fox Float X Factory 185x50 |
| Headset | Cane Creek 50 ZS44/56 |
| Stem | RaceFace Aeffect R 35mm x 50mm |
| Handlebar | Spank 35mm x 800mm, 25mm Rise |
| Grips | Spank Spoon |
| Brake | Shimano XT 4 Piston M8120 |
| Rotors | Shimano XT 203mm / 180mm (6-Bolt) SM-RT76 |
| Shifter | Shimano XT 12spd M8100 (I-Spec EV) |
| Seat post | SDG Tellis (S1-S2: 170mm, S3-S5 200mm), 31.6 |
| Seat collar | Knolly |
| Saddle | SDG Bel-Air V3 |
| Crankset | Shimano XT M8130 30T, 170mm |
| Bottom bracket | Shimano XT MT800 BSA, threaded |
| Derailleur | Shimano XT M8100 12spd, Shadow Plus |
| Cassette | Shimano SLX M7100 12spd, 10-51T, Hyperglide+ |
| Chain | Shimano XT M8100 |
| Wheelset | DT Swiss M1900 SPLINE 28h Straight-Pull (MS) |
| Front tire | Maxxis DHF 29" 2.5" 3C Maxx Terra EXO |
| Rear tire | Maxxis DHR2 29" 2.3" 3C Maxx Terra EXO |
