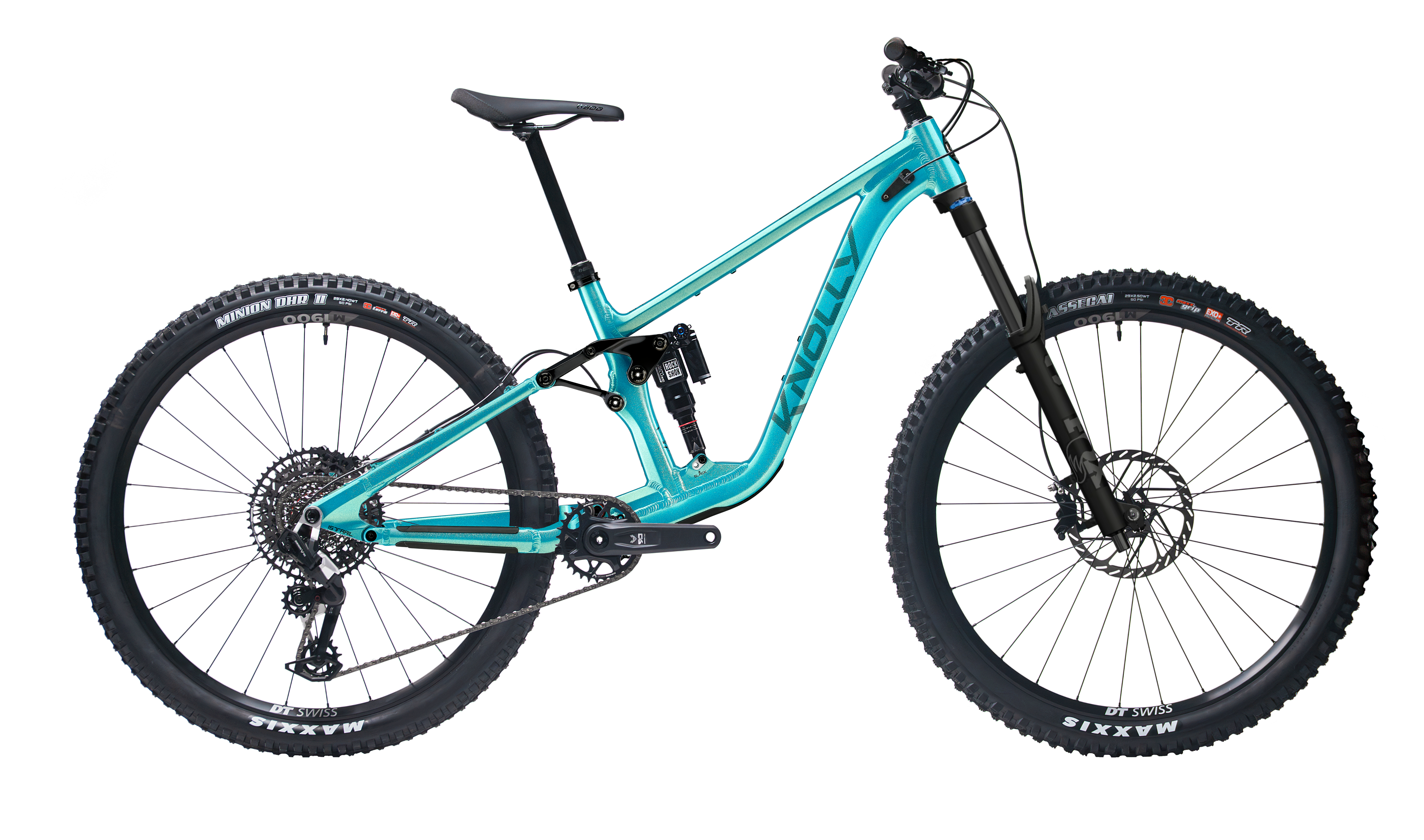

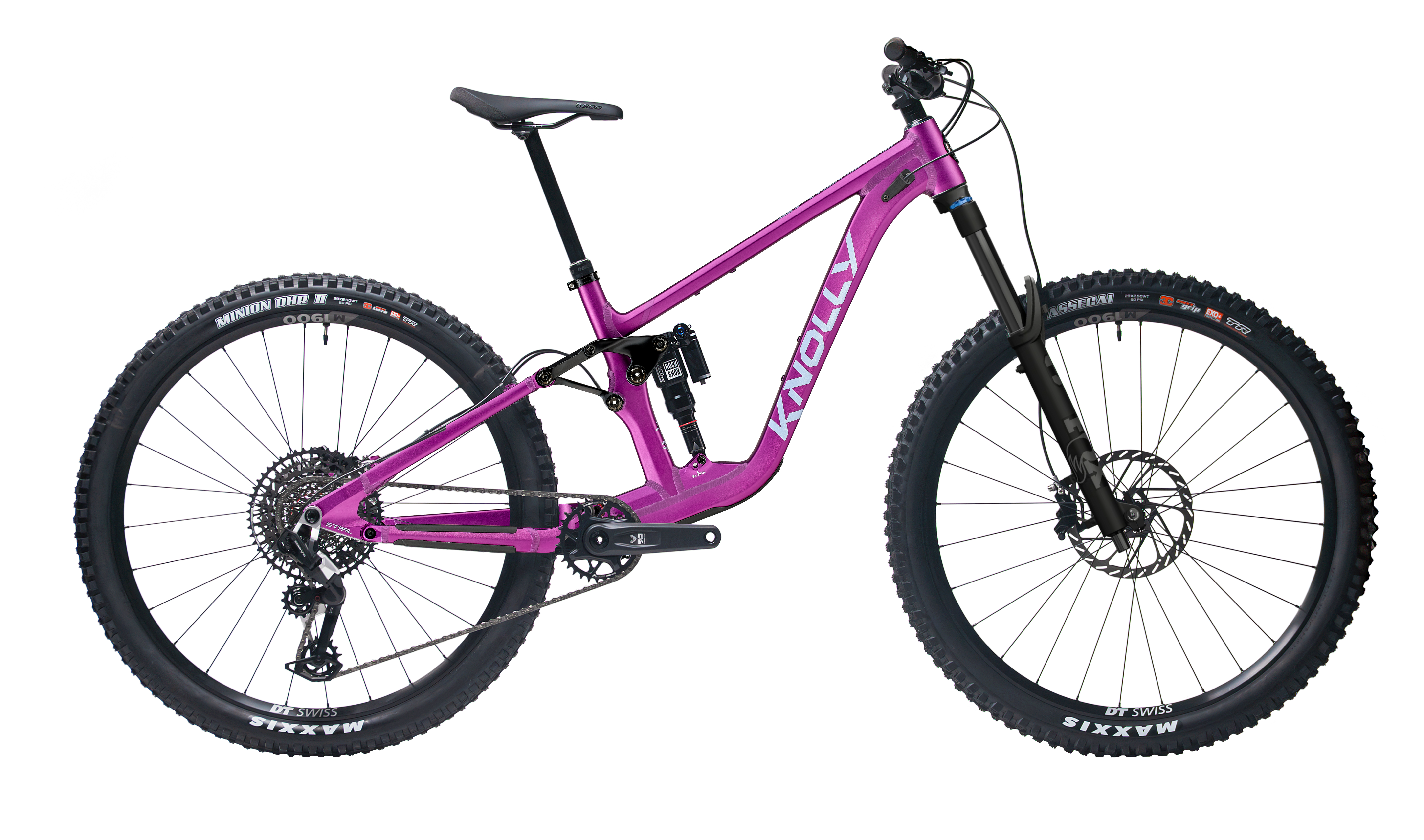

Fugitive 140 Eagle 90
$7,999.00 CAD
- Premium quality all-metal frame
- Rockshox Lyrik Ultimate Fork | 150mm | 29"
- Rockshox Super Deluxe Ultimate Shock | 185x55
- SRAM Maven Silver Brakes
- SRAM Eagle 90 Transmission Drivetrain
Sizing
| S (S2) | 160cm - 170cm |
|---|---|
| M (S3) | 170cm - 180cm |
| L (S4) | 180cm - 190cm |
| XL (S5) | 190cm - 200cm |
Geometry
Fugitive 140
FRONT TRAVEL - 150mm / REAR TRAVEL - 140mm
| Neutral | Slack | |
|---|---|---|
| Head angle | 65.5º | 64.75º |
| Effective seat tube angle | 76.75º | 76.0º |
| BB height | 337mm | 327mm |
| BB drop | 35mm | 45mm |
| S2 - Small | S3 - Medium | S4 - Large | S5 - X-Large | |
|---|---|---|---|---|
| Reach | 440mm | 467mm | 492mm | 517mm |
| Stack | 629mm | 629mm | 636mm | 645mm |
| Head tube length | 108mm | 108mm | 115mm | 125mm |
| Effective top tube length | 587mm | 614mm | 641mm | 668mm |
| Actual top tube length | 587mm | 605mm | 627mm | 651mm |
| Seat tube length | 350mm | 390mm | 440mm | 490mm |
| Seat tube max insertion depth | 260mm | 300mm | 350mm | 400mm |
| Theoretical saddle height (from BB axis) | 700mm | 750mm | 800mm | 850mm |
| Seat tube angle (actual) | 67.5º | 68º | 68.75º | 70.5º |
| Stand over height | 705mm | 720mm | 730mm | 752mm |
| Chainstay length | 430mm | 434mm | 438mm | 442mm |
| Wheelbase length | 1188mm | 1219mm | 1251mm | 1284mm |
Check out the Dropper Post Calculator and other helpful resources on our Service page.
Specs
| 140 | |
|---|---|
| Fork A/C length | 565mm (150mm inc. headset) |
| Intended use | 29er |
| Fork travel compatibility | 150mm Nominal 29" |
| Fork travel | Min / Max: 140-160mm |
| Rear travel | 140mm |
| Rear wheel size and recommended max tire width | 29" x 2.6" |
| Dropout/Hub spec | 12 x 157mm |
| Shock hardware | M8x30mm lower |
| Seat post diameter | 31.6mm |
| Seat post inner depth | 300mm+ |
| Dropper post range | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) |
| Headset | ZS 44mm upper & ZS 56mm lower |
| Post collar | 35mm |
| Frame material | 6066 Aluminum |
| Internal cable routing | Yes |
| Chainguide mount | ISCG-05 (removable) |
| BB shell spec | 73mm BSA threaded |
| Chainline | 54-57 with 55-56.5mm optimal |
| Rear brake tabs | Post mount 180mm |
| Two geo settings | Yes |
| Bottle mounts | Yes |
| Tool mounts | Yes |
Build kit
| Eagle 90 Transmission | |
|---|---|
| Fork | RockShox Lyrik Ultimate 29" D2 150mm, 44mm Offset |
| Rear Shock | RockShox Super Deluxe Ultimate C2 185x55 |
| Headset | Cane Creek 50 ZS44/56 |
| Stem | RaceFace Aeffect R 35mm x 50mm |
| Handlebar | RaceFace Aeffect R 35x780mm, 20mm Rise |
| Grips | Spank Spoon |
| Brake | SRAM Maven Silver |
| Rotors | SRAM HS2 6 Bolt, 200mm / 180mm |
| Shifter | SRAM Eagle 90 Transmission |
| Seat post | SDG Tellis (S1-S2: 170mm, S3-S5: 200mm), 31.6 |
| Seat collar | Knolly |
| Saddle | SDG Bel-Air V3 |
| Crankset | SRAM Eagle 90 Transmission 32T, 170mm |
| Bottom bracket | SRAM DUB BSA 73mm Wide |
| Derailleur | SRAM Eagle 90 Transmission |
| Cassette | SRAM XS-1275 Transmission 10-52T |
| Chain | GX Eagle Transmission |
| Wheelset | Spank 359 HEX J-Bend 32h MX (XD) 29" |
| Front tire | Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+ |
| Rear tire | Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+ |
