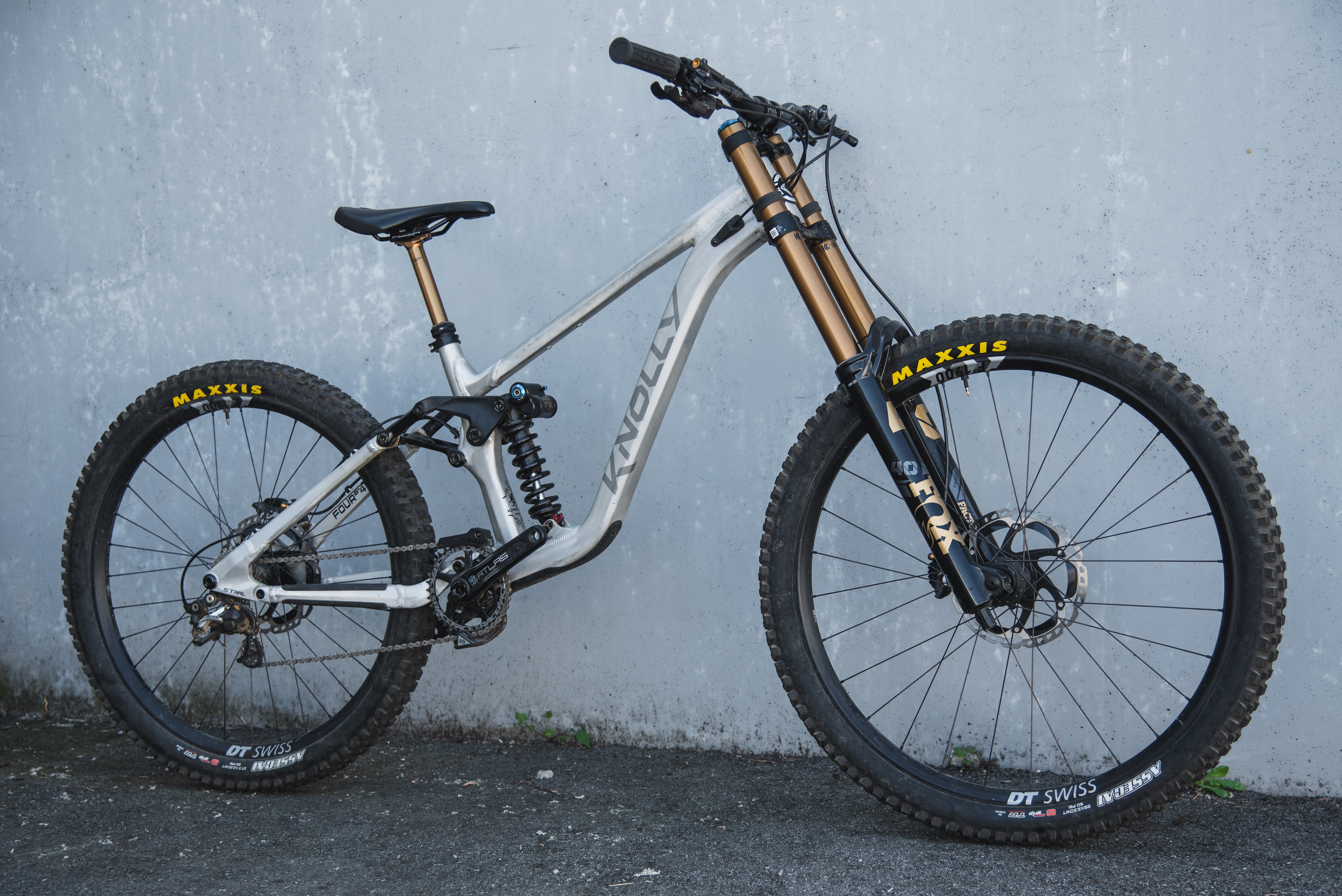

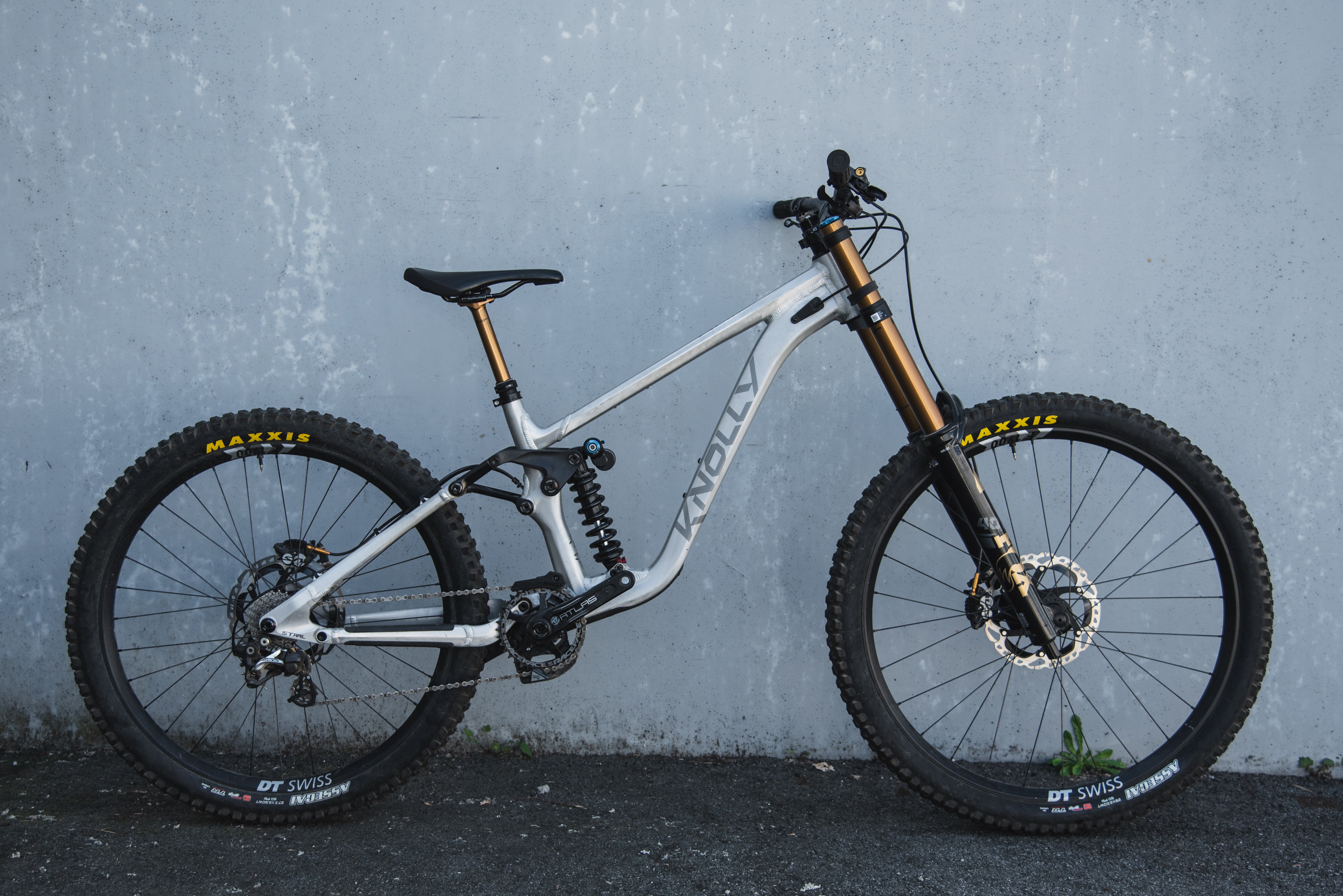

Delirium S3 | Shimano Saint Complete | Raw
Delirium S3 | Shimano Saint Complete | Raw
Delirium S3 | Shimano Saint Complete | Raw
Delirium S3 | Shimano Saint Complete | Raw

Delirium S3 | Shimano Saint Complete | Raw

$7,599.00 CAD $7,599.00 CAD Sale • Save

Lightly ridden demo bike, featured at Crankworx Whistler 2025 and in our Pinkbike Delirium review.

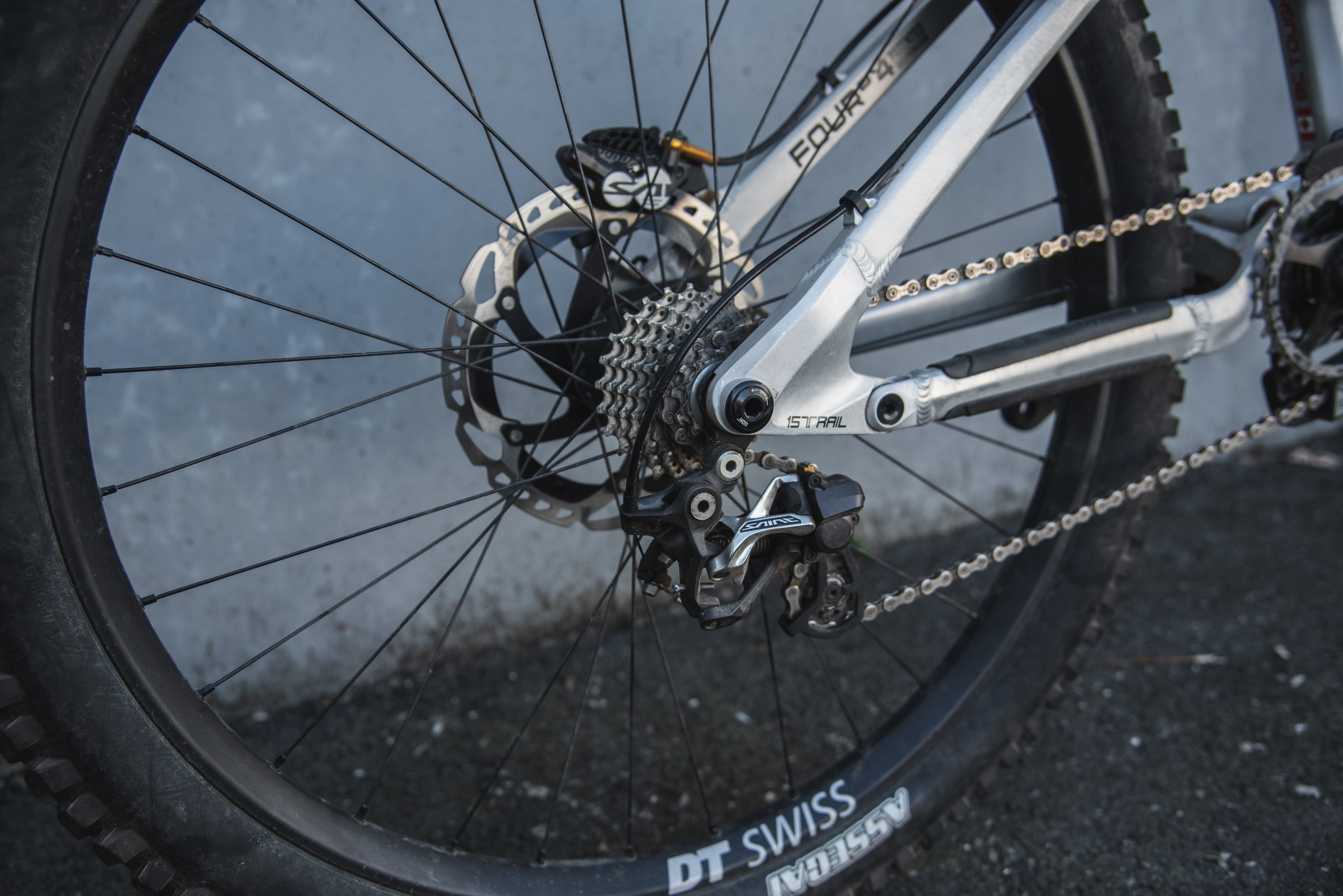

- Shimano Saint 10-speed groupset, with Fox 40 fork, DHX2 Factory shock and 500lb spring.

- Shimano Saint brakeset.

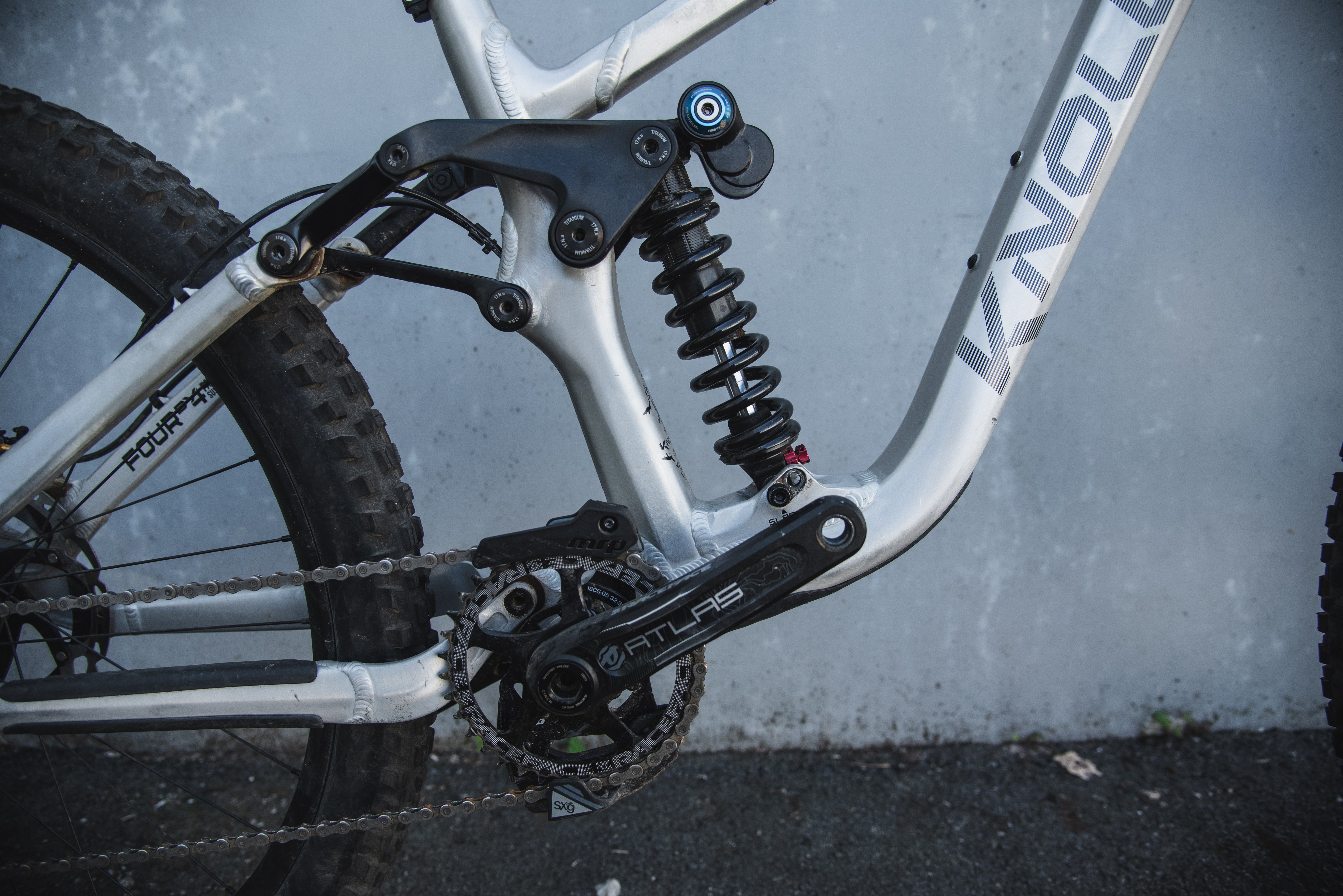

- Raceface Atlas Crankset 165mm 36T.

- DT Swiss FR1900 DH wheelset.

- Fox Transfer Dropper 240mm plus remote.

- Cockpit includes Raceface Chester Stem, Spank Spike 35 Vibrocore 25R handlebar, and SDG Bel-Air saddle.

- MRP SXG chainguide.

Bike is fully assembled. No shipping option for this item - local pickup only.

Size S3 - Medium
Build Kit Shimano Saint
Colour Raw

Sizing

S (S2)160cm - 170cm
M (S3)170cm - 180cm
L (S4)180cm - 190cm
XL (S5)190cm - 200cm

Geometry

S2 - SmallS3 - MediumS4 - LargeS5 - X-Large
Reach457mm480mm506mm531mm
Stack612mm621mm630mm639mm
Head tube length105mm115mm125mm135mm
Effective top tube length589mm616mm643mm670mm
Actual top tube length578mm608mm633mm657mm
Seat tube length350mm390mm440mm490mm
Seat tube max insertion depth280mm320mm370mm420mm
Theoretical saddle height (from BB axis)700mm750mm800mm850mm
Seat tube angle (actual)71.3º71.8º72.8º73.8º
Stand over height690mm720mm745mm760mm
Chainstay length439mm443mm447mm451mm
Wheelbase length1243mm1285mm1318mm1352mm
NeutralSlack
Head angle63.25º62.5º
Effective seat tube angle77.75º76.0º
BB height357mm348mm
BB drop-4.5mm4.5mm

Specs

Fork A/C length600mm (190mm inc. headset)
Intended usePark, Shuttle, Freeride, Super Enduro
Fork travel compatibility200mm Nominal 29" mullet
Fork travel190-203mm
Rear travel190mm
Rear wheel size and recommended max tire width27.5" x 2.6"
Dropout/Hub spec12x 157mm
Shock hardwareM8x30mm lower
Seat post diameter31.6mm
Seat post inner depth300mm+
Dropper post range220-240mm (S4 & S5 / Large & X-Large) 200-220mm (S3 / Medium) 180-200mm (S2 / Small)
HeadsetZS 44mm upper & ZS 56mm lower
Post collar35mm
Frame material6066 Aluminum
Internal cable routingYes
Chainguide mountISCG-05 (removable)
BB shell spec73mm BSA threaded
Chainline54-57mm with 55-56.5mm optimal
Rear brake tabsPost mount 180mm
Two geo settingsYes
Bottle mountsYes
Tool mountsYes

Build kits

GX DHSaint
ForkRockShox BoXXer 29" 200mm, blackFox 40 Factory 29" 203mm
Rear shockMarzocchi Bomber CR 205x65Fox DHX2 Factory 205x65
HeadsetCane Creek 50 ZS44/56Cane Creek 50 ZS44/56
StemRaceFace Chester 35mm DMRaceFace Chester 35mm DM
HandlebarSpank Spike Vibrocore 35mm x 810mm, 25mm RiseSpank Spike Vibrocore 35mm x 810mm, 25mm Rise
GripsSpank SpoonSpank Spoon
BrakeSRAM Maven BronzeShimano Saint M820
RotorsSRAM HS2 6 Bolt, 200mm / 200mmShimano XT (6-bolt) SM-RT86 203mm / 203mm
ShifterSRAM GX DH 7spdShimano Saint M820 10spd
Seat postRaceFace Ride 31.6x375mmRaceFace Ride 31.6x375mm
Seat collarKnollyKnolly
SaddleSDG Bel-Air V3SDG Bel-Air V3
CranksetSRAM Descendent 7K 165mm, SB+ 34T ChainringRaceFace Atlas 165mm 36T Chainring
Bottom bracketSRAM DUB BSA SB+Raceface BSA Threaded 30mm
DerailleurSRAM GX DH 7spdShimano Saint M820 10spd
CassetteSRAM GX DH 7spd 11-25TShimano Saint CS-5700 10spd 11-25T
ChainSRAM GX 11spd PC-1130Shimano 10spd CN-HG54
ChainguideMRP SXg Steel OEMMRP SXg Steel OEM
WheelsetDT Swiss F1900 29" 20 x 110mm Boost + 27.5 12 x 157mm Super Boost HG, 6 boltDT Swiss F1900 29" 20 x 110mm Boost + 27.5 12 x 157mm Super Boost HG, 6 bolt
Front tireMaxxis Assegai 29" x 2.5" DH Maxx GripMaxxis Assegai 29" x 2.5" DH Maxx Grip
Rear tireMaxxis Assegai 29" x 2.5" DH Maxx GripMaxxis Assegai 29" x 2.5" DH Maxx Grip
