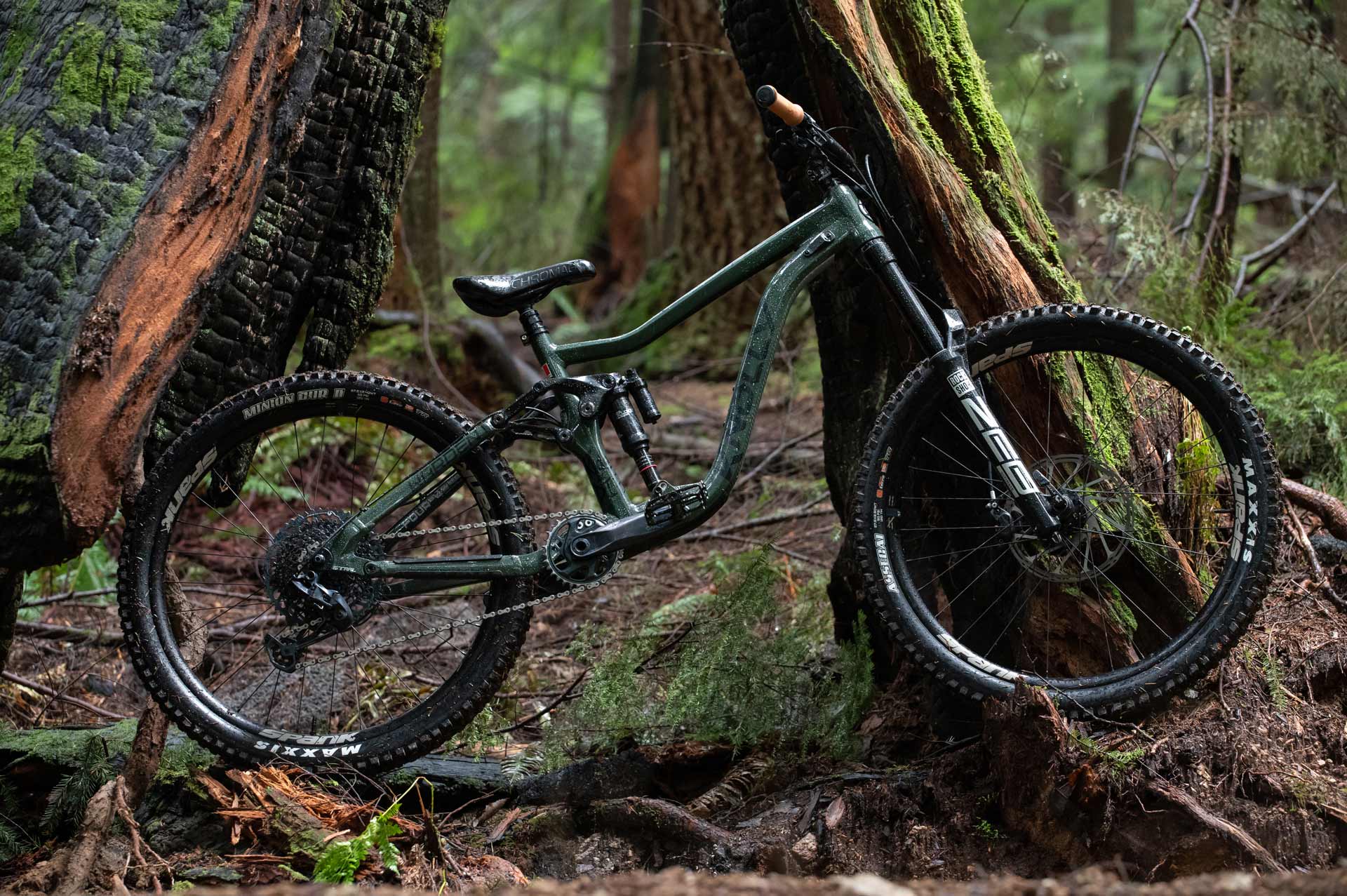

Warden 168
170
168
27.5
Bikes ship with kits unassembled and require a full build by the customer. Product images may not be accurate and spec is subject to change due to supply chain challenges.
If you have any questions, contact us - info@knollybikes.com.
*Coil shock options are available upon request*
Please note - On orders outside of North America, additional costs for duty, brokerage and country fees (VAT) are to be paid by you unless they are already shown in the "Taxes" amount during checkout.
157Trail
We feature 157Trail rear hub spacing which uses the wide flange 157 hubs with 73mm BB shells. This spacing provides the most options for tire size and can easily clear tire widths up to 2.6. With 157Trail, heel clearance is exceptional and chainring clearance remains huge at 36T.
OSD

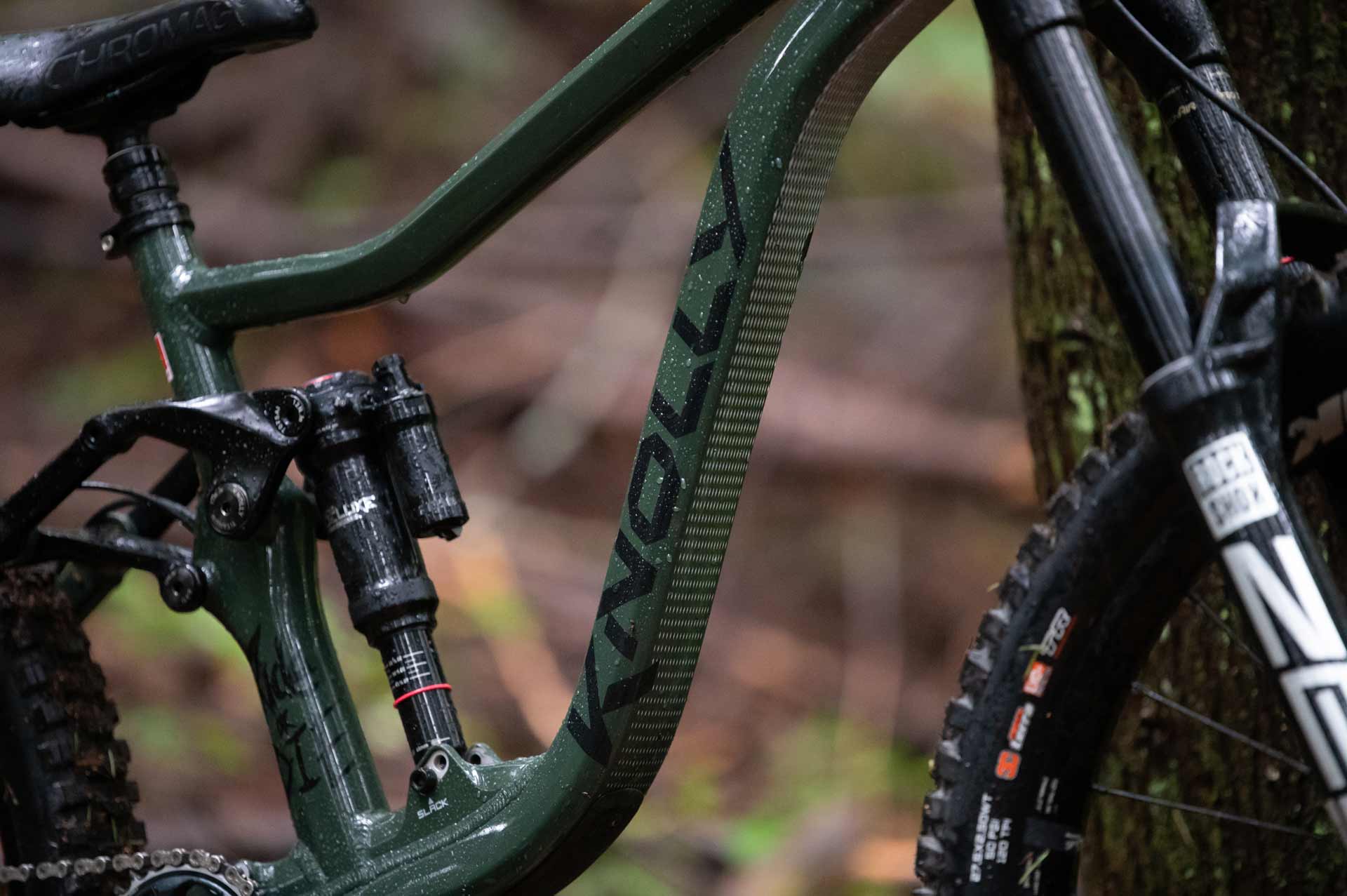

Our patented offset straight seat tube design (OSD) allows our riders to transition effectively between a highly efficient pedaling position and the “attack position” required for aggressive riding. It enables the rider to drop the saddle on the downs and is critical in allowing maximum rear wheel travel while keeping the back wheel away from the seat tube under full compression. This design allows us to run 200+mm dropper posts because our seat tubes are straight and un-interrupted.
Human centric sizing
We have always believed in human centric sizing and design our bikes to deliver optimal reach, standover height and geometry for a broad range of riders.
Sizing
| S | 155cm - 170cm |
|---|---|
| M | 170cm - 178cm |
| L | 178cm - 188cm |
| XL | 188cm - 195cm |
Geo
| Slack | Neutral | |
|---|---|---|
| Head Angle | 64.5º | 65.25º |
| BB height | 338 | 348 |
| Effective seat tube angle | 76º | 76.75º |
| Chainstay length | 434 | 431.5 |
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| Head Tube Length | 103 | 110 | 120 | 135 |
| Stand over height | 678 | 713 | 753 | 798 |
| Seat Tube Length | 360 | 405 | 456 | 505 |
| Actual Top Tube Length | 573 | 599 | 625 | 650 |
| Effective Top Tube Length | 583 | 610 | 641 | 673 |
| Wheelbase | 1200 | 1227 | 1253 | 1279 |
| Stack | 588 | 595 | 599 | 613 |
| Reach | 452 | 475.5 | 500 | 520 |
Specs
| Fork length (incl headset) | 563mm |
|---|---|
| Front Travel | 170mm |
| Rear Travel | 168mm |
| Wheel size and max width | 27.5" x 2.8" |
| Dropout/Hub Spec | 12 x 157mm |
| Seat post diameter | 31.6mm |
| Seat post insert depth | 280mm+ |
| Head set | 44mm upper & 56mm lower |
| Post collar | 35mm |
| Frame material | 6066 Aluminum, Custom Titanium Hardware |
| Internal cable routing with Di2 battery compartment | Yes |
| Upper chain guide mount | E-type direct mount (removable) |
| Chainguide Tabs | ISCG05 (removable) |
| BB Shell Spec | 73mm / threaded |
| Chainline | 55-57 with 56.5mm optimal |
| Rear Brake Tabs | Post mount 160mm |
| Two Geo settings | Slack or Neutral |
| Bottle mounts | Yes |
Build Kits
NX |
GX |
XT |
||
|---|---|---|---|---|
| Fork | RockShox ZEB Ultimate RC2 170mm, 27.5", 44mm Offset | RockShox ZEB Ultimate RC2 170mm, 27.5", 44mm Offset | Fox 38 27.5" Grip 2 Factory Series 170mm, 44mm Offset | |
| Headset | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 | |
| Stem | RaceFace Aeffect R 35mm x 40mm | Spank 35mm x 40mm | RaceFace Aeffect R 35mm x 40mm | |
| Handlebar | RaceFace Aeffect R 35x780mm, 20mm Rise | Spank 35mm x 800mm, 25mm Rise | RaceFace Next R 35mm x 800mm, 20mm Rise | |
| Grips | Spank / SDG | Spank / SDG | Spank / SDG | Chromag Basis Black |
| Brake | SRAM Guide RE | Magura MT5 | Shimano XT 4 Piston M8120 | |
| Rotors | SRAM Centerline 220mm / 200mm | Magura Storm HC 203mm / 180mm | Shimano XT 203mm / 180mm (6-Bolt) SM-RT76 | |
| Shifter | SRAM NX Eagle | SRAM GX Eagle | Shimano XT 12spd M8100 (I-Spec EV) | |
| Seat Post | SDG Tellis 170mm, 31.6 | SDG Tellis 170mm, 31.6 | SDG Tellis 170mm, 31.6 | |
| Seat Collar | Knolly | Knolly | Knolly | |
| Saddle | SDG Bel-Air V3 | SDG Bel-Air V3 | Chromag Lynx DT | |
| Crankset | SRAM Descendant 170mm 30T Ring | SRAM GX Eagle 170 32T Ring | Shimano XT M8130 12spd 30T, 170mm | |
| Bottom Bracket | SRAM DUB BSA SB+ | SRAM DUB BSA SB+ | Shimano XT MT800 BSA | |
| Derailleur | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 12spd, Shadow Plus | |
| Cassette | SRAM XG1230 Eagle 11-50T | SRAM XG1275 Eagle 10-52T | Shimano XT M8100 12spd, 10-51T, Hyperglide+ | |
| Chain | SRAM NX Eagle | SRAM GX Eagle | Shimano XT M8100 12spd | |
| Wheelset | Spank Oozy Trail 345, Hex Hub, 32h J-Bend (HG) | Spank Oozy Trail 345, Hex Hub, 32h J-Bend (XD) | Spank Oozy Trail 345 HEX 32h J-Bend (MS) | |
| Front Tire | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ | |
| Rear Tire | Maxxis DHR2 27.5" 2.4" 3C MaxxTerra EXO+ | Maxxis DHR2 27.5" 2.4" 3C MaxxTerra EXO+ | Maxxis DHR2 27.5" 2.4" 3C MaxxTerra EXO+ |
