Fugitive | 140
$5,199.00 USD
Our most popular 29er trail bike makes a comeback with a completely new tubeset, straight top tube design, & refreshed geo. It's equipped with Enduro bearings on all pivot locations & each frame size gets specific chainstays lengths and seat tube angles. The Fugitive is the most versatile model in our line-up & it's available in two suspension options that suits post-work backyard laps, weekend tech climbs, and mid-summer rocky descents.
Looking for LESS travel? Try the Fugitive 125.
- REAR TRAVEL OPTIONS: 140
- FORK OPTIONS: 150
- WHEELS: 29"

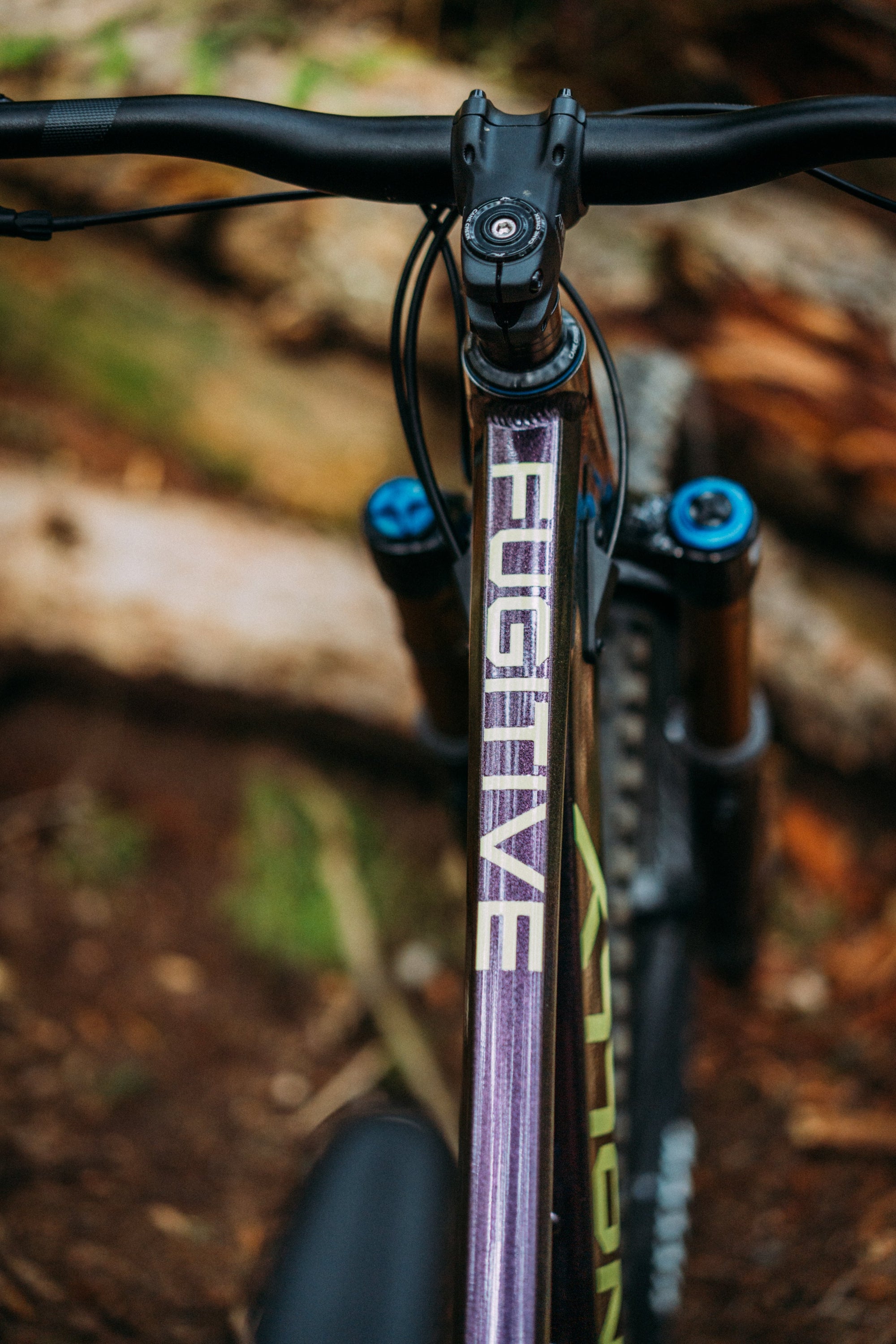

- STRAIGHT TOP TUBE: better standover and improved aesthetics
- UNIFIED MONOBLOCK REAR LINK: works in collaboration with the lower swing link; increased rigidity and lessens lateral stresses on shock mount
- ENDURO BEARINGS: in all pivots
- FLAT TOOLING BEARING LOCATIONS: makes servicing bearings easier
- SIZE SPECIFIC CHAINSTAY LENGHT: creates a better balanced bike and better fit for tall and short riders
- SRAM UDH COMPATIBILITY: with Knolly specific fully CNC'd aluminum hanger included
- SUPPORTS LONGER DROPPER POSTS: 200mm-240mm dependent on frame size for a wide range of inseam lengths
- MOUNTS FOR TOOLS: under the top tube
- LOWER SHOCK MOUNT: features 30mm axle to work with Fox Roller Bearing Shock hardware kits
- POST MOUNT: direct 180mm rear brake mounts
- 157TRAIL REAR END SPACING brings improved rear end stability and chainline
Note: due to the combination of the anodizing and welding process of our alloy frames, there may be some slight color variation on our anodized finished frames around the weld lines and random locations throughout the frame's surface.
Complete bikes ship unassembled & require a full build. Spec is subject to change without notice. If you have any questions, contact us at info@knollybikes.com.
Sizing
| S (S2) | 160cm - 170cm |
|---|---|
| M (S3) | 170cm - 180cm |
| L (S4) | 180cm - 190cm |
| XL (S5) | 190cm - 200cm |
Geometry
Fugitive 140
FRONT TRAVEL - 150mm / REAR TRAVEL - 140mm
| Neutral | Slack | |
|---|---|---|
| Head angle | 65.5º | 64.75º |
| Effective seat tube angle | 76.75º | 76.0º |
| BB height | 337mm | 327mm |
| BB drop | 35mm | 45mm |
| S2 - Small | S3 - Medium | S4 - Large | S5 - X-Large | |
|---|---|---|---|---|
| Reach | 440mm | 467mm | 492mm | 517mm |
| Stack | 629mm | 629mm | 636mm | 645mm |
| Head tube length | 108mm | 108mm | 115mm | 125mm |
| Effective top tube length | 587mm | 614mm | 641mm | 668mm |
| Actual top tube length | 587mm | 605mm | 627mm | 651mm |
| Seat tube length | 350mm | 390mm | 440mm | 490mm |
| Seat tube max insertion depth | 260mm | 300mm | 350mm | 400mm |
| Theoretical saddle height (from BB axis) | 700mm | 750mm | 800mm | 850mm |
| Seat tube angle (actual) | 67.5º | 68º | 68.75º | 70.5º |
| Stand over height | 705mm | 720mm | 730mm | 752mm |
| Chainstay length | 430mm | 434mm | 438mm | 442mm |
| Wheelbase length | 1188mm | 1219mm | 1251mm | 1284mm |
Check out the Dropper Post Calculator and other helpful resources on our Service page.
Specs
| 125 | 140 | |
|---|---|---|
| Fork A/C length | 554mm (140mm inc. headset) | 565mm (150mm inc. headset) |
| Intended use | 29er | 29er |
| Fork travel compatibility | 140mm Nominal 29" | 150mm Nominal 29" |
| Fork travel | Min / Max: 140-160mm | Min / Max: 140-160mm |
| Rear travel | 125mm | 140mm |
| Rear wheel size and recommended max tire width | 29" x 2.6" | 29" x 2.6" |
| Dropout/Hub spec | 12 x 157mm | 12 x 157mm |
| Shock hardware | M8x30mm lower | M8x30mm lower |
| Seat post diameter | 31.6mm | 31.6mm |
| Seat post inner depth | 300mm+ | 300mm+ |
| Dropper post range | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) |
| Headset | ZS 44mm upper & ZS 56mm lower | ZS 44mm upper & ZS 56mm lower |
| Post collar | 35mm | 35mm |
| Frame material | 6066 Aluminum | 6066 Aluminum |
| Internal cable routing | Yes | Yes |
| Chainguide mount | ISCG-05 (removable) | ISCG-05 (removable) |
| BB shell spec | 73mm BSA threaded | 73mm BSA threaded |
| Chainline | 54-57 with 55-56.5mm optimal | 54-57 with 55-56.5mm optimal |
| Rear brake tabs | Post mount 180mm | Post mount 180mm |
| Two geo settings | Yes | Yes |
| Bottle mounts | Yes | Yes |
| Tool mounts | Yes | Yes |
Build kits
| NGX | Deore | GX | XT | |
|---|---|---|---|---|
| Fork | Marzocchi Z1 29” 150mm, 44mm Offset | Fox 36 29" Grip2 Performance Elite 150mm, 44mm offset | Fox 36 29" Grip2 Performance Elite 150mm, 44mm offset | Fox 36 29" Grip2 Factory 150mm, 44mm offset |
| Rear Shock | Fox Float X Performance 185x55 | Fox Float X Performance 185x55 | Fox Float X Performance 185x55 | Fox Float X Factory 185x55 |
| Headset | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 |
| Stem | RaceFace Aeffect R 35mm x 50mm | RaceFace Aeffect R 35mm x 50mm | RaceFace Aeffect R 35mm x 50mm | RaceFace Aeffect R 35mm x 50mm |
| Handlebar | RaceFace Aeffect R 35x780mm, 20mm Rise | RaceFace Aeffect R 35x780mm, 20mm Rise | RaceFace Aeffect R 35x780mm, 20mm Rise | Spank 35mm x 800mm, 25mm Rise |
| Grips | Spank Spoon | Spank Spoon | Spank Spoon | Spank Spoon |
| Brake | SRAM Guide RE 4 Piston | Shimano Deore 4 Piston M6120 | Magura MT5 | Shimano XT 4 Piston M8120 |
| Rotors | SRAM Centerline 200mm / 180mm | Shimano SLX 203mm / 180mm (6-Bolt) SM-RT66 | Magura Storm HC 203mm / 180mm | Shimano XT 203mm / 180mm (6-Bolt) SM-RT76 |
| Shifter | SRAM NX Eagle | Shimano Deore 12spd M6100 (I-Spec EV) | SRAM GX Eagle | Shimano XT 12spd M8100 (I-Spec EV) |
| Seat post | SDG Tellis (S1-S2: 170mm, S3-S5: 200mm), 31.6 | SDG Tellis (S1-S2: 170mm, S3-S5: 200mm), 31.6 | SDG Tellis (S1-S2: 170mm, S3-S5: 200mm), 31.6 | SDG Tellis (S1-S2: 170mm, S3-S5: 200mm), 31.6 |
| Seat collar | Knolly | Knolly | Knolly | Knolly |
| Saddle | SDG Bel-Air V3 | SDG Bel-Air V3 | SDG Bel-Air V3 | SDG Bel-Air V3 |
| Crankset | SRAM Descendent 7k 30T Ring | Shimano Deore M6120 30T, 170mm | SRAM Descendent 7k 170mm 30T Ring | Shimano XT M8130 30T, 170mm |
| Bottom bracket | SRAM DUB BSA SB+ | Shimano MT501 BSA, threaded | SRAM DUB BSA SB+ | Shimano XT MT800 BSA, threaded |
| Derailleur | SRAM GX Eagle | Shimano Deore M6100 12spd, Shadow Plus | SRAM GX Eagle | Shimano XT M8100 12spd, Shadow Plus |
| Cassette | SRAM PG1230 Eagle 10-50T | Shimano Deore M6100 12spd, 10-51T, Hyperglide+ | SRAM PG1175 Eagle 10-52T | Shimano SLX M7100 12spd, 10-51T, Hyperglide+ |
| Chain | SRAM NX Eagle | Shimano Deore M6100 | SRAM NX Eagle | Shimano XT M8100 |
| Wheelset | Spank 359 HEX J-Bend 32h (HG) | DT Swiss M1900 SPLINE 28h Straight-Pull (MS) | DT Swiss M1900 SPLINE 28h Straight-Pull (XD) OR Spank 359 HEX J-Bend 32h (XD) | DT Swiss M1900 SPLINE 28h Straight-Pull (MS) OR Spank 359 HEX J-Bend 32h (MS) |
| Front tire | Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+ |
| Rear tire | Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+ | Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+ | Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+ | Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+ |
