$6,199.00 USD Sale • Save

The NEW Knolly Chilcotin is longer, faster and more aggressive. With a completely updated geometry, kinematics and frame design, the Chilcotin was created to charge down rugged technical terrain as the Enduro bike in the new Knolly lineup.

Consumers asked and Knolly answered: all new Knolly frames include the standout details like the straight top tube design, Enduro bearings on all pivots, and a one-piece monolink driving the shock. With the new Chilcotin, there are two suspension options (170/170 & 160/155) and an expanded size offering of small through x-large frames.

Looking for MORE travel? Try the Chilcotin 170.

*Please note - Standard GX kits are currently shipping with Fox 36 Performance Elite fork and Factory X2 shock*

  • EXPANDED SIZE RANGE: Small, Medium, Large, X-Large. Now including a size small to allow a broader range of riders to fit our most aggressive big wheeled bike.
  • REAR TRAVEL OPTIONS: 170 & 155
  • FORK OPTIONS: 170 & 160
  • WHEELS: 29"
  • STRAIGHT TOP TUBE: better standover and improved aesthetics
  • UNIFIED MONOBLOCK REAR LINK: works in collaboration with the lower swing link; increased rigidity and lessens lateral stresses on shock mount
  • ENDURO BEARINGS: in all pivots
  • FLAT TOOLING BEARING LOCATIONS: makes servicing bearings easier
  • SIZE SPECIFIC CHAINSTAY LENGHT: creates a better balanced bike and better fit for tall and short riders
  • SRAM UDH COMPATIBILITY: with Knolly specific fully CNC'd aluminum hanger included
  • SUPPORTS LONGER DROPPER POSTS: 200mm-240mm dependent on frame size for a wide range of inseam lengths
  • MOUNTS FOR TOOLS: under the top tube
  • LOWER SHOCK MOUNT: features 30mm axle to work with Fox Roller Bearing Shock hardware kits
  • POST MOUNT: direct 180mm rear brake mounts
  • 157TRAIL REAR END SPACING brings improved rear end stability and chainline
Size

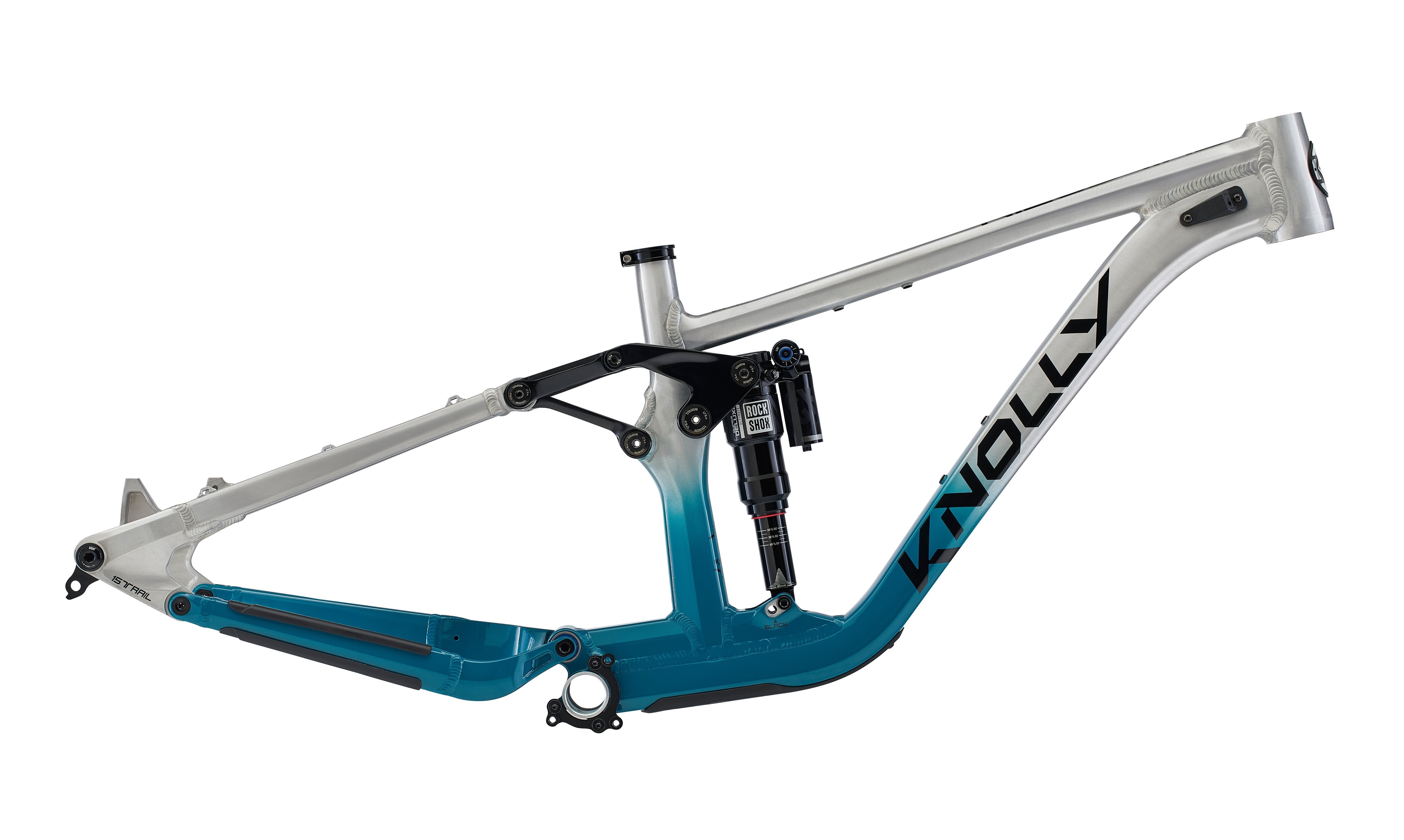

Color Raw Fade
Build Kit
Notify me when this is back in stock

Complete bikes ship unassembled & require a full build (incl. local pickup orders). Spec is subject to change without notice. If you have any questions, contact us at info@knollybikes.com.

Ask for Knolly at your local dealer

Sizing

S (S2)160cm - 170cm
M (S3)170cm - 180cm
L (S4)180cm - 190cm
XL (S5)190cm - 200cm

Geometry

Chilcotin 155

Front Travel - 160mm / Rear Travel - 155mm
NeutralSlack
Head angle64.75º64.25º
Effective seat tube angle78.0º77.5º
BB height346mm336mm
BB drop26mm36mm
S2 - SmallS3 - MediumS4 - LargeS5 - X-Large
Reach462mm487mm513mm538mm
Stack619mm626mm633mm642mm
Head tube length 100mm108mm115mm125mm
Effective top tube length596mm623mm650mm677mm
Actual top tube length583mm607mm634mm658mm
Seat tube length350mm390mm440mm490mm
Seat tube max insertion depth260mm300mm350mm400mm
Theoretical saddle height (from BB axis)700mm750mm800mm850mm
Seat tube angle (actual)69.0º69.5º70.0º71.0º
Stand over height721mm730mm745mm769mm
Chainstay length438mm442mm446mm450mm
Wheelbase length1224mm1257mm1289mm1323mm
Wheelbase Length BB Drop BB Height Reach Stack Chainstay Length Stand Over Height Effective Seat Tube Angle Seat Tube Angle (Actual) Head Angle Head Tube Length Seat Tube Length Effective Top Tube Length Actual Top Tube Length Theoretical Saddle Height (From BB Axis) Seat Tube Max Insertion Depth

Check out the Dropper Post Calculator and other helpful resources on our Service page.

Specs

155170
Fork A/C length575mm (160mm inc. headset)585mm (170mm inc. headset)
Intended use29er29er
Fork travel compatibility160 Nominal 29"170mm Nominal 29"
Fork travelMin / Max: 170-180mmMin / Max: 170-180mm
Rear travel155mm170mm
Rear wheel size and recommended max tire width29" x 2.6"29" x 2.6"
Dropout/Hub spec12 x 157mm12 x 157mm
Shock hardwareM8x30mm lowerM8x30mm lower
Seat post diameter31.6mm31.6mm
Seat post inner depth300mm+300mm+
Dropper post range200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2)200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2)
HeadsetZS 44mm upper & ZS 56mm lowerZS 44mm upper & ZS 56mm lower
Post collar35mm35mm
Frame material6066 Aluminum6066 Aluminum
Internal cable routingYesYes
Chainguide mountISCG-05 (removable)ISCG-05 (removable)
BB shell spec73mm BSA threaded73mm BSA threaded
Chainline54-57mm with 55-56.5mm optimal54-57mm with 55-56.5mm optimal
Rear brake tabsPost mount 180mmPost mount 180mm
Two geo settingsYesYes
Bottle mountsYesYes
Tool mountsYesYes

Build kits

DeoreGXGX FactoryXT
ForkMarzocchi Z1 29” 160mm, 44mm OffsetFox 36 29" Grip2 Performance Elite 160mm, 44mm offsetFox 36 29" Grip2 Factory 160mm, 44mm offsetFox 36 29" Grip2 Factory 160mm, 44mm offset
Rear shockRockShox Super Deluxe Ultimate Air RCT '22 205x60, CL RMFox Float X2 Factory 205x60, CL RMFox Float X2 Factory 205x60, CL RMFox Float X2 Factory 205x60, CL RM
HeadsetFSA Orbit ZS44/56FSA Orbit ZS44/56FSA Orbit ZS44/56 OR Cane Creek 40 ZS44/56FSA Orbit ZS44/56 OR Cane Creek 40 ZS44/56
StemRaceFace Aeffect R 35mm x 40mmRaceFace Aeffect R 35mm x 40mmRaceFace Aeffect R 35mm x 40mmRaceFace Aeffect R 35mm x 40mm
HandlebarRaceFace Aeffect R 35x780mm, 20mm RiseRaceFace Aeffect R 35x780mm, 20mm RiseSpank 35mm x 820mm, 25mm RiseSpank 35mm x 820mm, 25mm Rise
GripsSpank SpoonSpank SpoonSpank SpoonSpank Spoon
BrakeShimano Deore 4 Piston M6120Magura MT5Magura MT5Shimano XT 4 Piston M8120
RotorsShimano SLX 203mm / 180mm (6-Bolt) SM-RT66Magura Storm HC 203mm / 180mmMagura Storm HC 203mm / 180mmShimano XT 203mm / 180mm (6-Bolt) SM-RT76
ShifterShimano Deore 12spd M6100 (I-Spec EV)SRAM GX EagleSRAM GX EagleShimano XT 12spd M8100 (I-Spec EV)
Seat postSDG Tellis (S2: 170mm, S3-S5 200mm), 31.6SDG Tellis (S2: 170mm, S3-S5 200mm), 31.6SDG Tellis (S2: 170mm, S3-S5 200mm), 31.6SDG Tellis (S2: 170mm, S3-S5 200mm), 31.6
Seat collarKnollyKnollyKnollyKnolly
SaddleSDG Bel-Air V3SDG Bel-Air V3SDG Bel-Air V3SDG Bel-Air V3
CranksetShimano Deore M6120 30T, 170mmSRAM Descendent 7k 30T RingSRAM Descendent 7k 30T RingShimano XT M8130 30T, 170mm
Bottom bracketShimano MT501 BSA, threadedSRAM DUB BSA SB+SRAM DUB BSA SB+Shimano XT MT800 BSA, threaded
DerailleurShimano Deore M6100 12spd, Shadow PlusSRAM GX EagleSRAM GX EagleShimano XT M8100 12spd, Shadow Plus
CassetteShimano Deore M6100 12spd, 10-51T, Hyperglide+SRAM PG1175 Eagle 10-52TSRAM PG1175 Eagle 10-52TShimano SLX M7100 12spd, 10-51T, Hyperglide+
ChainShimano Deore M6100SRAM NX EagleSRAM NX EagleShimano XT M8100
WheelsetDT Swiss M1900 SPLINE 28h Straight-Pull (MS) OR Spank 359 HEX J-Bend 32h (MS)DT Swiss M1900 SPLINE 28h Straight-Pull (XD) OR Spank 359 HEX J-Bend 32h (XD)DT Swiss M1900 SPLINE 28h Straight-Pull (XD) OR Spank 359 HEX J-Bend 32h (XD)DT Swiss M1900 SPLINE 28h Straight-Pull (MS) OR Spank 359 HEX J-Bend 32h (MS)
Front tireMaxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+Maxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+
Rear tireMaxxis DHR2 29" 2.4" 3C MaxxTerra EXO+Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+Maxxis DHR2 29" 2.4" 3C MaxxTerra EXO+
