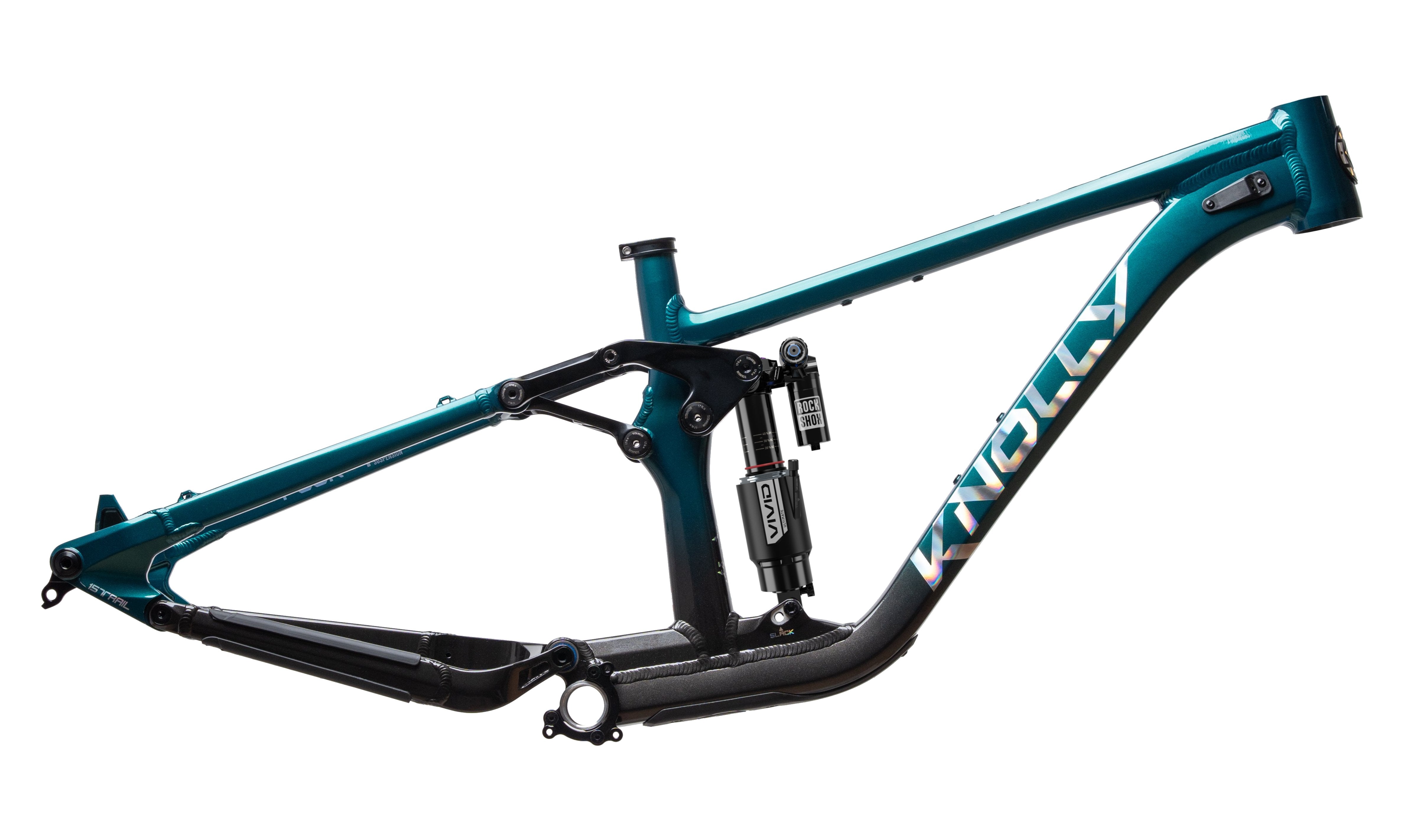

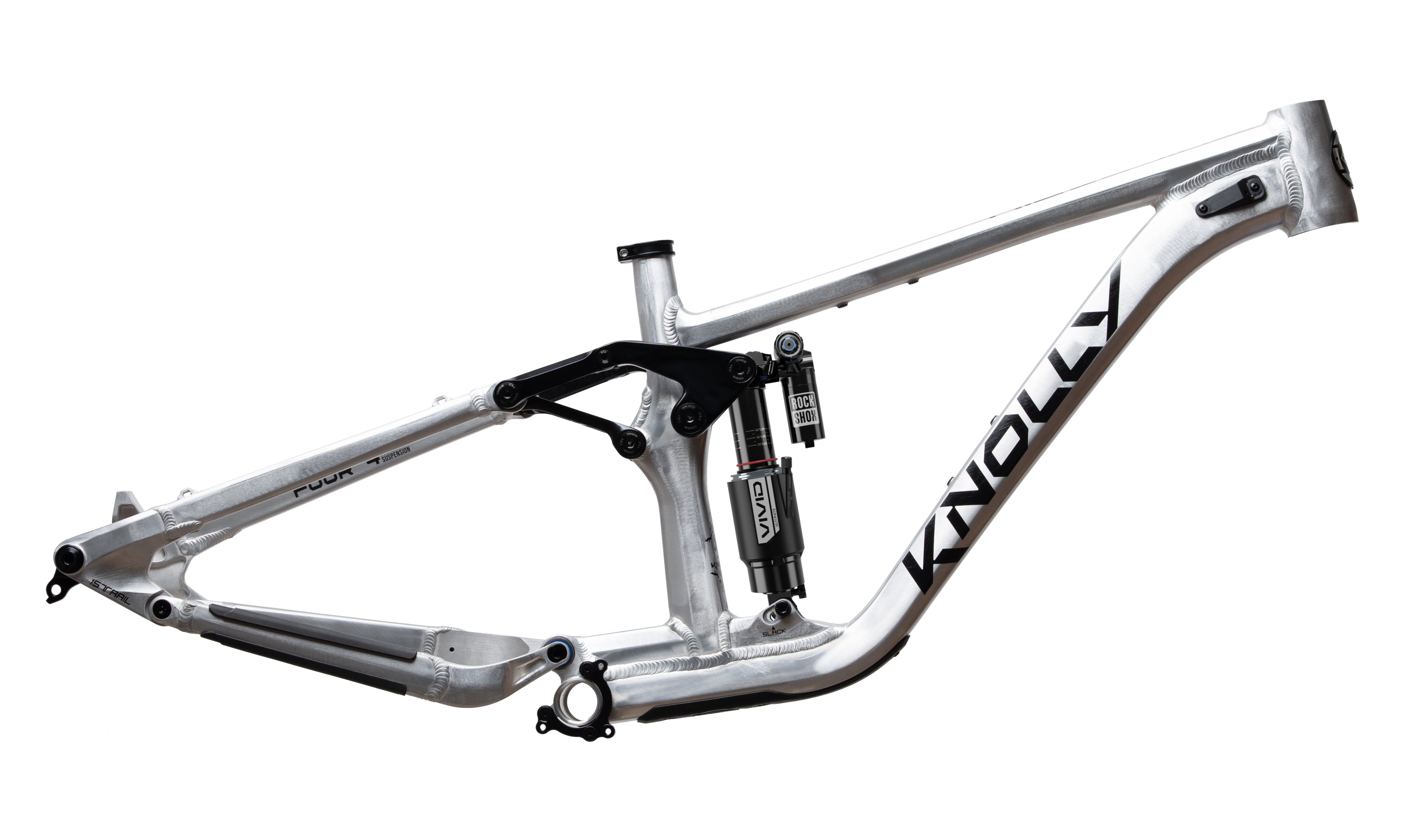

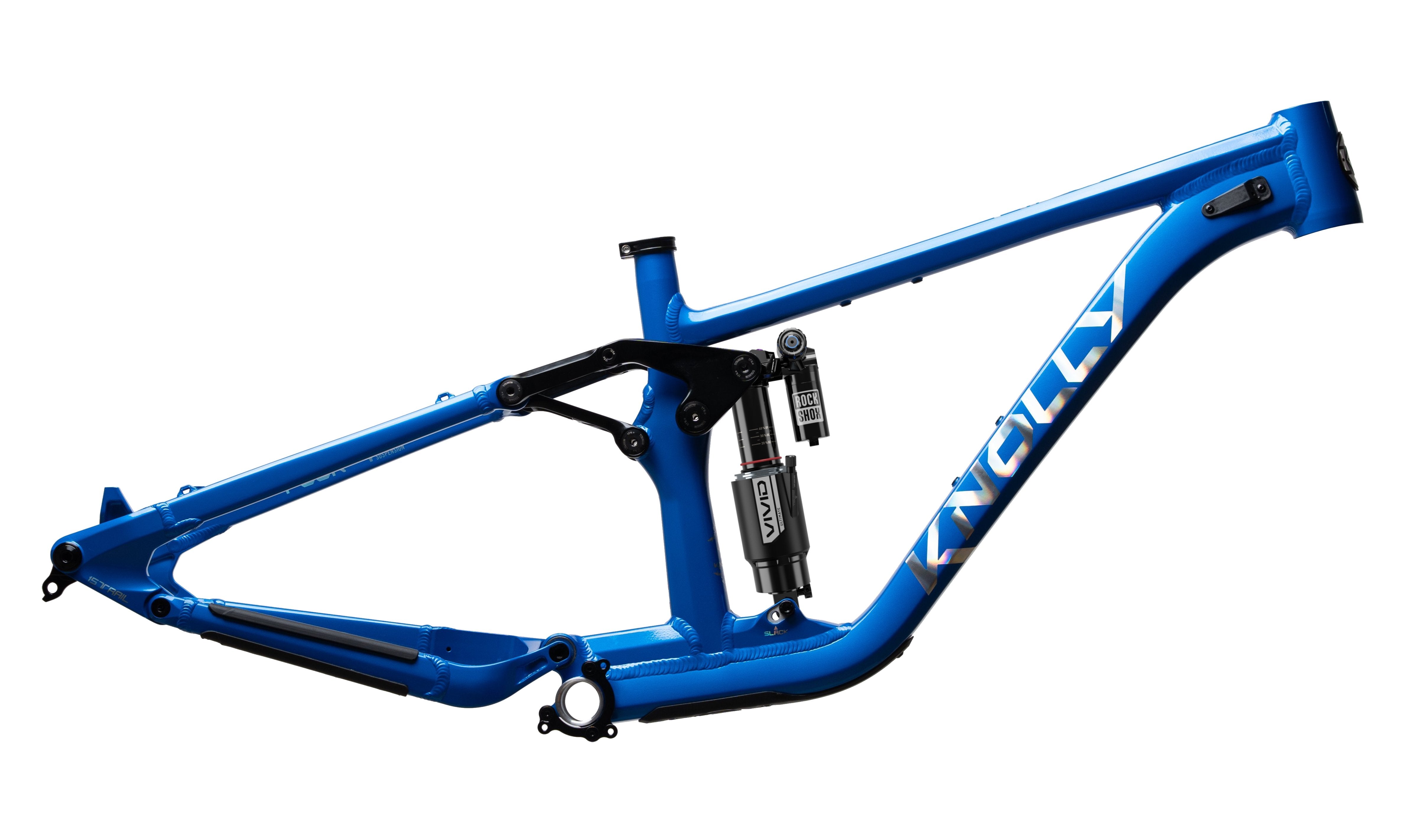

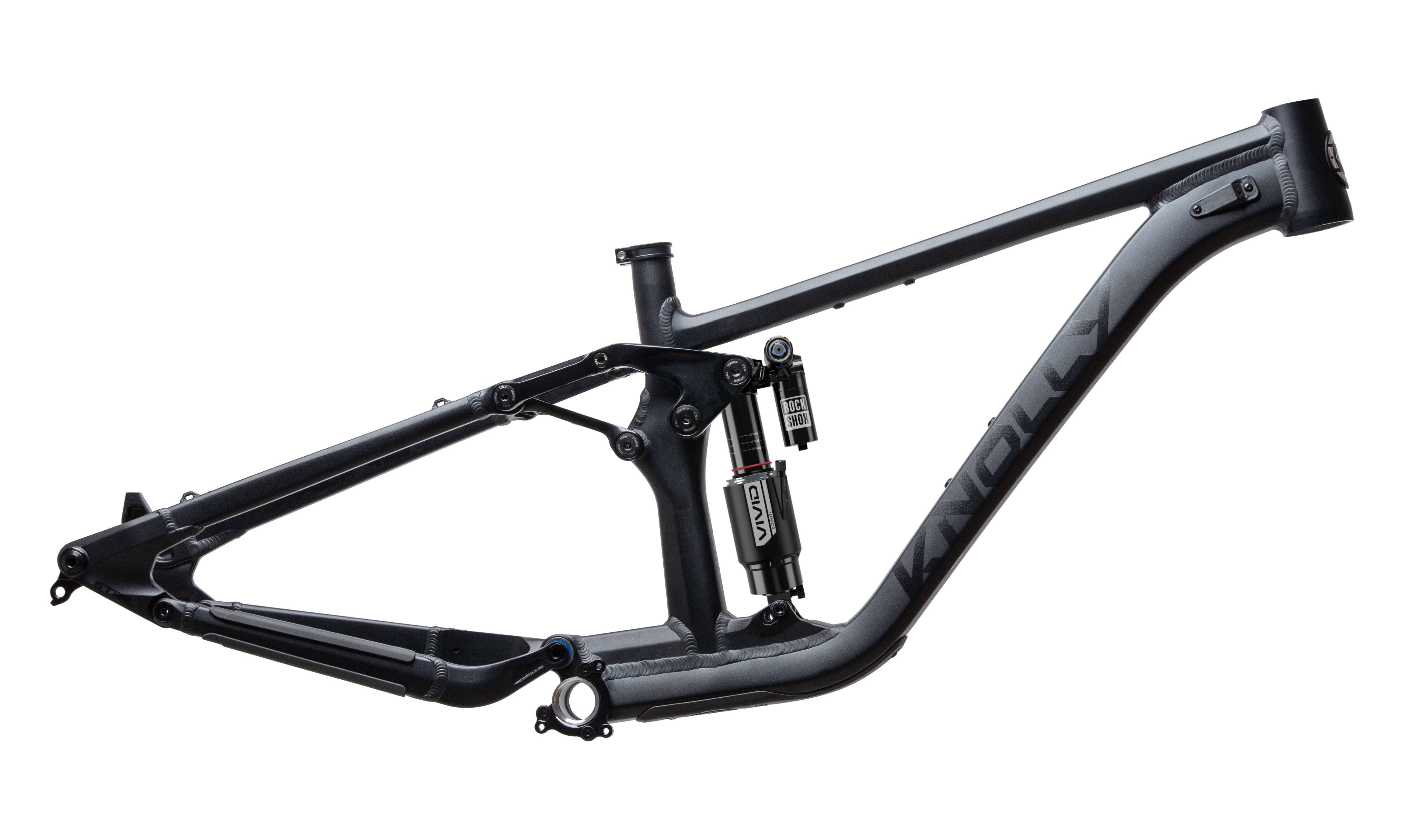

Chilcotin Closeout Frame
$1,649.00 USD
$3,300.00 USD
- Premium quality all-metal frame
- Rockshox Vivid Ultimate Shock | 205x65
Looking for a complete bike? Contact SALES and we’ll get you riding.
Sizing
| S (S2) | 160cm - 170cm |
|---|---|
| M (S3) | 170cm - 180cm |
| L (S4) | 180cm - 190cm |
| XL (S5) | 190cm - 200cm |
Geometry
CHILCOTIN 170
FRONT TRAVEL - 170mm / REAR TRAVEL - 170mm
| Neutral | Slack | |
|---|---|---|
| Head angle | 64.25º | 63.75º |
| Effective seat tube angle | 77.5º | 77.0º |
| BB height | 349mm | 339mm |
| BB drop | 26mm | 36mm |
| S2 - Small | S3 - Medium | S4 - Large | S5 - X-Large | |
|---|---|---|---|---|
| Reach | 458mm | 483mm | 509mm | 534mm |
| Stack | 623mm | 630mm | 637mm | 646mm |
| Head tube length | 100mm | 108mm | 115mm | 125mm |
| Effective top tube length | 597mm | 624mm | 651mm | 678mm |
| Actual top tube length | 583mm | 607mm | 634mm | 658mm |
| Seat tube length | 350mm | 390mm | 440mm | 490mm |
| Seat tube max insertion depth | 260mm | 300mm | 350mm | 400mm |
| Theoretical saddle height (from BB axis) | 700mm | 750mm | 800mm | 850mm |
| Seat tube angle (actual) | 68.5º | 69.0º | 69.5º | 70.5º |
| Stand over height | 724mm | 734mm | 749mm | 773mm |
| Chainstay length | 438mm | 442mm | 446mm | 450mm |
| Wheelbase length | 1228mm | 1261mm | 1293mm | 1327mm |
Check out the Dropper Post Calculator and other helpful resources on our Service page.
Specs
| 155 | 170 | |
|---|---|---|
| Fork A/C length | 575mm (160mm inc. headset) | 585mm (170mm inc. headset) |
| Intended use | 29er | 29er |
| Fork travel compatibility | 160 Nominal 29" | 170mm Nominal 29" |
| Fork travel | Min / Max: 170-180mm | Min / Max: 170-180mm |
| Rear travel | 155mm | 170mm |
| Rear wheel size and recommended max tire width | 29" x 2.6" | 29" x 2.6" |
| Dropout/Hub spec | 12 x 157mm | 12 x 157mm |
| Shock hardware | M8x30mm lower | M8x30mm lower |
| Seat post diameter | 31.6mm | 31.6mm |
| Seat post inner depth | 300mm+ | 300mm+ |
| Dropper post range | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) | 200mm+ (M, L, XL / S3, S4, S5) 175mm+ (Small / S2) |
| Headset | ZS 44mm upper & ZS 56mm lower | ZS 44mm upper & ZS 56mm lower |
| Post collar | 35mm | 35mm |
| Frame material | 6066 Aluminum | 6066 Aluminum |
| Internal cable routing | Yes | Yes |
| Chainguide mount | ISCG-05 (removable) | ISCG-05 (removable) |
| BB shell spec | 73mm BSA threaded | 73mm BSA threaded |
| Chainline | 54-57mm with 55-56.5mm optimal | 54-57mm with 55-56.5mm optimal |
| Rear brake tabs | Post mount 180mm | Post mount 180mm |
| Two geo settings | Yes | Yes |
| Bottle mounts | Yes | Yes |
| Tool mounts | Yes | Yes |
