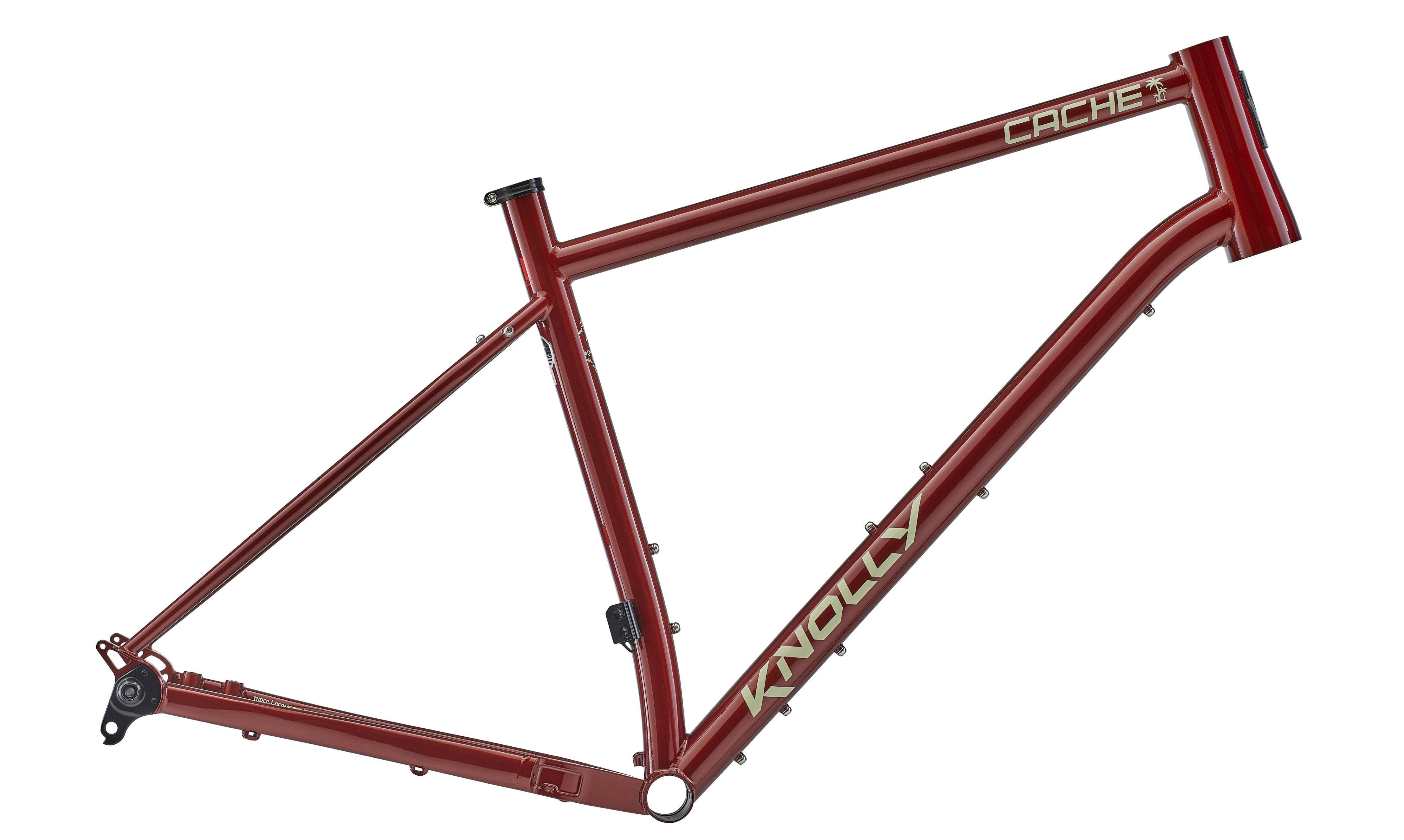

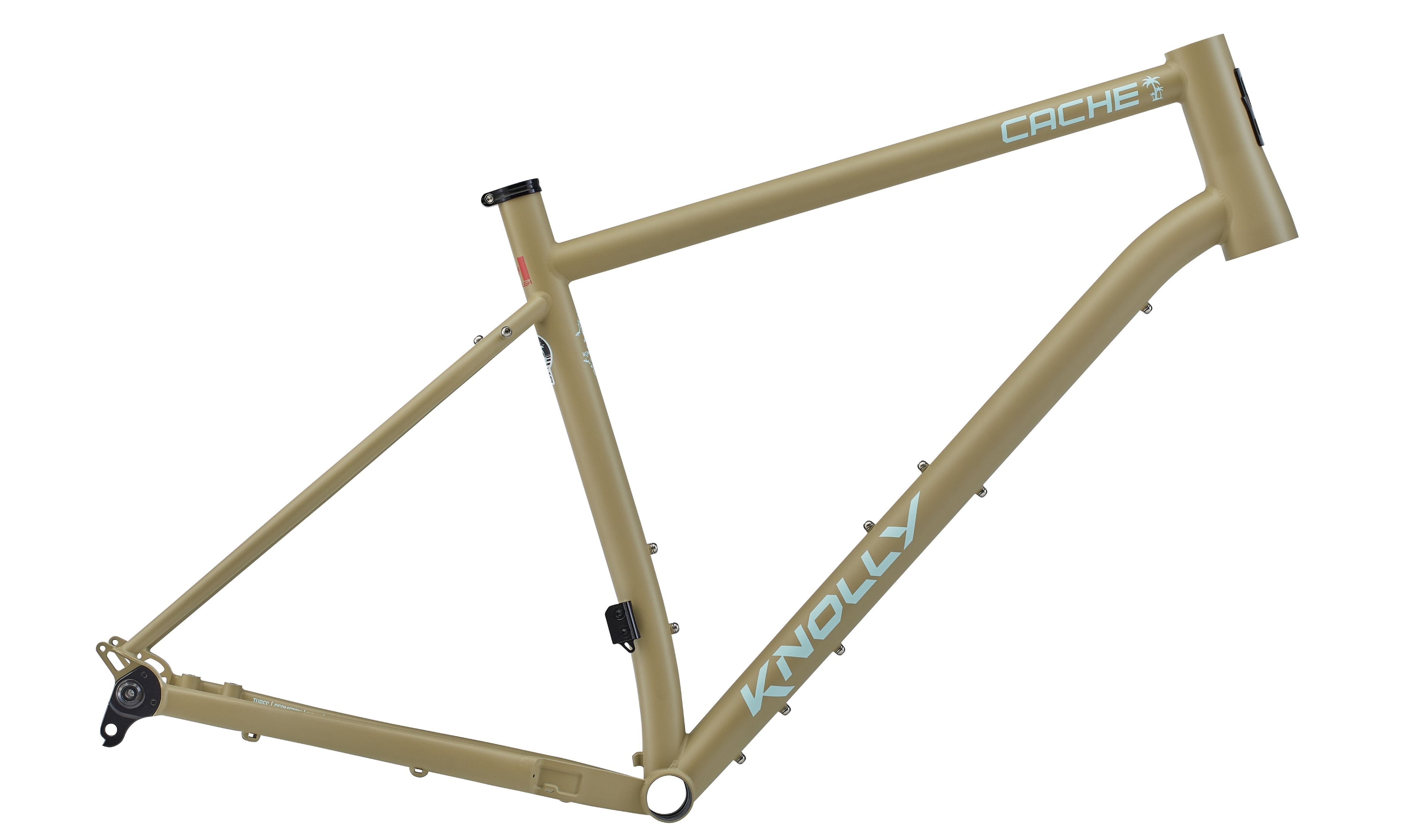

Cache Steel Closeout Frame
$599.00 USD
$1,200.00 USD
- Premium quality all-metal frame
Looking for a complete bike? Contact SALES and we’ll get you riding.
Sizing
| 49.5 | 152cm - 157cm |
|---|---|
| 52 | 157cm - 162cm |
| 54 | 165cm - 170cm |
| 56 | 172cm - 177cm |
| 58 | 180cm - 185cm |
| 60 | 185cm - 187cm |
| 62.5 | 190cm - 195cm |
Geometry
CACHE STEEL
| 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm | |
|---|---|---|---|---|---|---|---|
| Reach | 385mm | 393mm | 401mm | 409mm | 417mm | 425mm | 438mm |
| Stack | 558.5mm | 572.7mm | 588mm | 602mm | 616.5mm | 630.5mm | 644.5mm |
| Head angle | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º | 70.5º |
| Head tube length | 128mm | 143mm | 157mm | 172mm | 187mm | 202mm | 217mm |
| Effective top tube length | 545.5mm | 557.5mm | 569.5mm | 581.5mm | 593.5mm | 606mm | 622mm |
| Effective seat tube angle | 74º | 74º | 74º | 74º | 74º | 74º | 74º |
| Seat tube length | 410mm | 438mm | 464mm | 492mm | 520mm | 548mm | 576mm |
| Seat tube angle (Actual) | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º | 72.5º |
| Stand over height | 719mm | 735mm | 751mm | 772mm | 786mm | 810mm | 824mm |
| Chainstay length | 422mm | 422mm | 422mm | 422mm | 422mm | 422mm | 422mm |
| Wheelbase Length | 1022.5mm | 1035.5mm | 1043.5mm | 1056.5mm | 1069.5mm | 1082.5mm | 1100mm |
| BB height (40mm tire) | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm | 276mm |
| BB drop | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm | 75mm |
Specs
| BB size | 68mm threaded |
|---|---|
| Seat post diameter | 31.6mm |
| Front derailleur mounting | Braze-on type |
| Rear hub spacing | 142 x 12mm |
| Tire clearance | 700c x 50mm or 650b (27.5") x 2.1" |
| Headset | 44mm upper & 56mm lower (same as our MTB frames) |
| Fork AC length (fork) | 402mm (397mm Fork + 5mm Headset) |
| Fork offset | 47mm / 52mm - Adjustable |
| Fork steerer | 1.5 Taper |
| Fork steerer length | 300mm |
| Fork disc brake | Flatmount w/ internal routing |
| Fork hub | 100 x 12mm Thru Axle |
| Fork tire clearance | 700c x 55mm or 650b (27.5") x 2.4" |
| Fork fender mounts | M6 front of crown mounts and triple fender/rack/cage mounts |
| Fork weight | 465g with Thru Axle |
