CLEARANCE - Warden 160 & 175 Deore LTD
$2,759.40 USD
A limited run of Warden 180/175mm and 160/160mm with the Shimano Deore build kit to showcase the versatility of this legendary bike.
- 175mm rear travel version will give you a Park/Freeride set up with a 180mm FOX 38 fork
- 160mm rear travel version will be a great Enduro ride with a 160mm Marzocchi Z1 fork

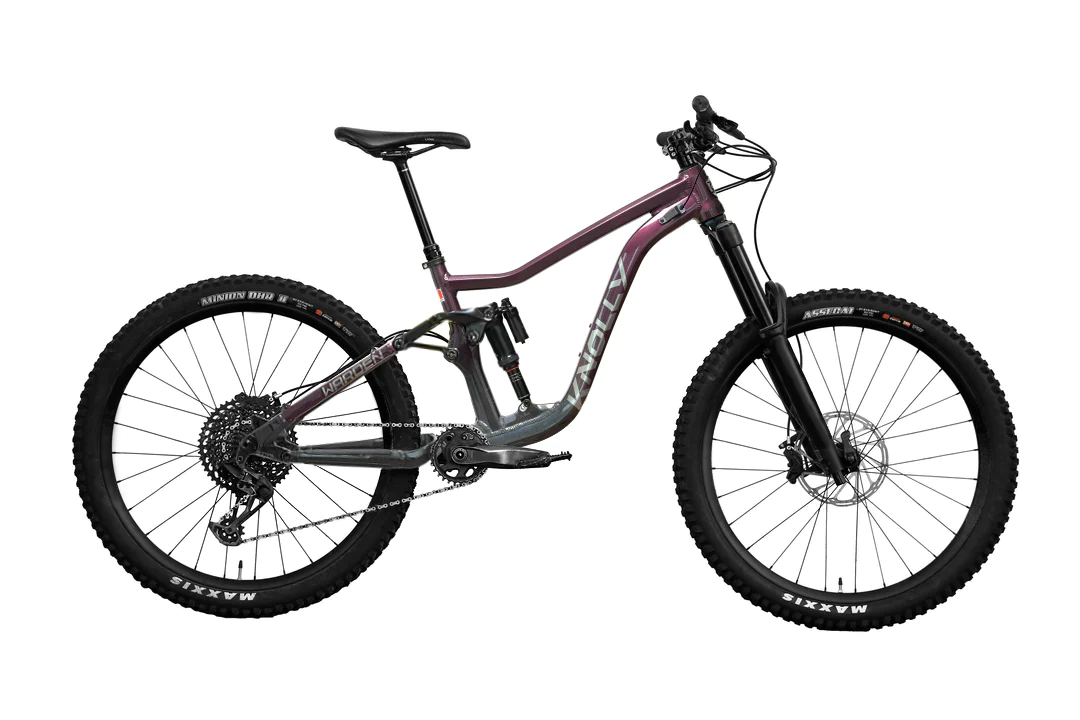

**photo not to spec
Complete bikes ship unassembled & require a full build. Spec is subject to change without notice. If you have any questions, contact us at info@knollybikes.com.
Sizing
Geometry
Specs
| Fork length | 563mm (inc. headset) |
|---|---|
| Front travel | 170mm |
| Rear travel | 168mm |
| Wheel size and max width | 27.5" x 2.8" |
| Dropout/Hub spec | 12 x 157mm |
| Seat post diameter | 31.6mm |
| Seat post inner depth | 280mm+ |
| Headset | 44mm upper & 56mm lower |
| Post collar | 35mm |
| Frame material | 6066 Aluminum, Custom Titanium Hardware |
| Cable routing | Internal with Di2 battery compartment |
| Upper chain guide mount | E-type direct mount (removable) |
| Chainguide tabs | ISCG05 (removable) |
| BB shell spec | 73mm / threaded |
| Chainline | 55-57 with 56.5mm optimal |
| Rear brake tabs | Post mount 160mm |
| Geo settings | Slack or Neutral |
| Bottle mounts | Yes |
Build kits
| Deore 160 | Deore 175 | |
|---|---|---|
| Fork | Marzocchi Z1 27.5” 160mm 44mm Offset | Fox 38 27.5" Grip2 Factory 180mm, 44mm offset |
| Rear shock | RockShox Super Deluxe Ultimate Air RCT '22 205x60, CL RM | RockShox Super Deluxe Ultimate Air OR Coil RCT '22 205x65, CL RM |
| Headset | FSA Orbit ZS44/56 | FSA Orbit ZS44/56 |
| Stem | RaceFace Aeffect R 35mm x 40mm | RaceFace Aeffect R 35mm x 40mm |
| Handlebar | RaceFace Aeffect R 35mm x 40mm | RaceFace Aeffect R 35mm x 40mm |
| Grips | Spank / SDG | Spank / SDG |
| Brake | Shimano Deore 4 Piston M6120 | Shimano Deore 4 Piston M6120 |
| Rotors | Shimano SLX 203mm / 180mm (6-Bolt) SM-RT66 | Shimano SLX 203mm / 180mm (6-Bolt) SM-RT66 |
| Shifter | Shimano Deore 12spd M6100 (I-Spec EV) | Shimano Deore 12spd M6100 (I-Spec EV) |
| Seat collar | Knolly | | Knolly |
| Saddle | SDG Bel-Air V3 | SDG Bel-Air V3 |
| Crankset | Shimano Deore M6120 30T, 170mm | Shimano Deore M6120 30T, 170mm |
| Bottom bracket | Shimano XT MT800 BSA | Shimano XT MT800 BSA |
| Derailleur | Shimano Deore M6100 12spd, Shadow Plus | Shimano Deore M6100 12spd, Shadow Plus |
| Cassette | Shimano Deore M6100 12spd, 10-51T, Hyperglide+ | Shimano Deore M6100 12spd, 10-51T, Hyperglide+ |
| Chain | Shimano Deore M6100 | Shimano Deore M6100 |
| Wheelset | DT Swiss M1900 SPLINE 28h Straight-Pull (MS) | DT Swiss M1900 SPLINE 28h Straight-Pull (MS) |
| Front tire | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ |
| Rear tire | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ | Maxxis Assegai 27.5" 2.5WT 3C MaxxGrip EXO+ |
