CLEARANCE - Chilcotin 167 Deore

  • 29
  • 170
  • 167

CLEARANCE - Chilcotin 167 Deore

$2,879.40 USD Sale Save

Our best selling Knolly model for 2023

The Chilcotin 167 (170mm fork) with the Shimano Deore build kit hits the right price point and gives you the pocket change to upgrade where you want on this big travel enduro 29er.

Take it to the bike park or hit big mountain enduro lines, the Chilcotin will take anything you throw at it.

  • 167mm rear travel version comes with a 170mm FOX 38 PSE fork

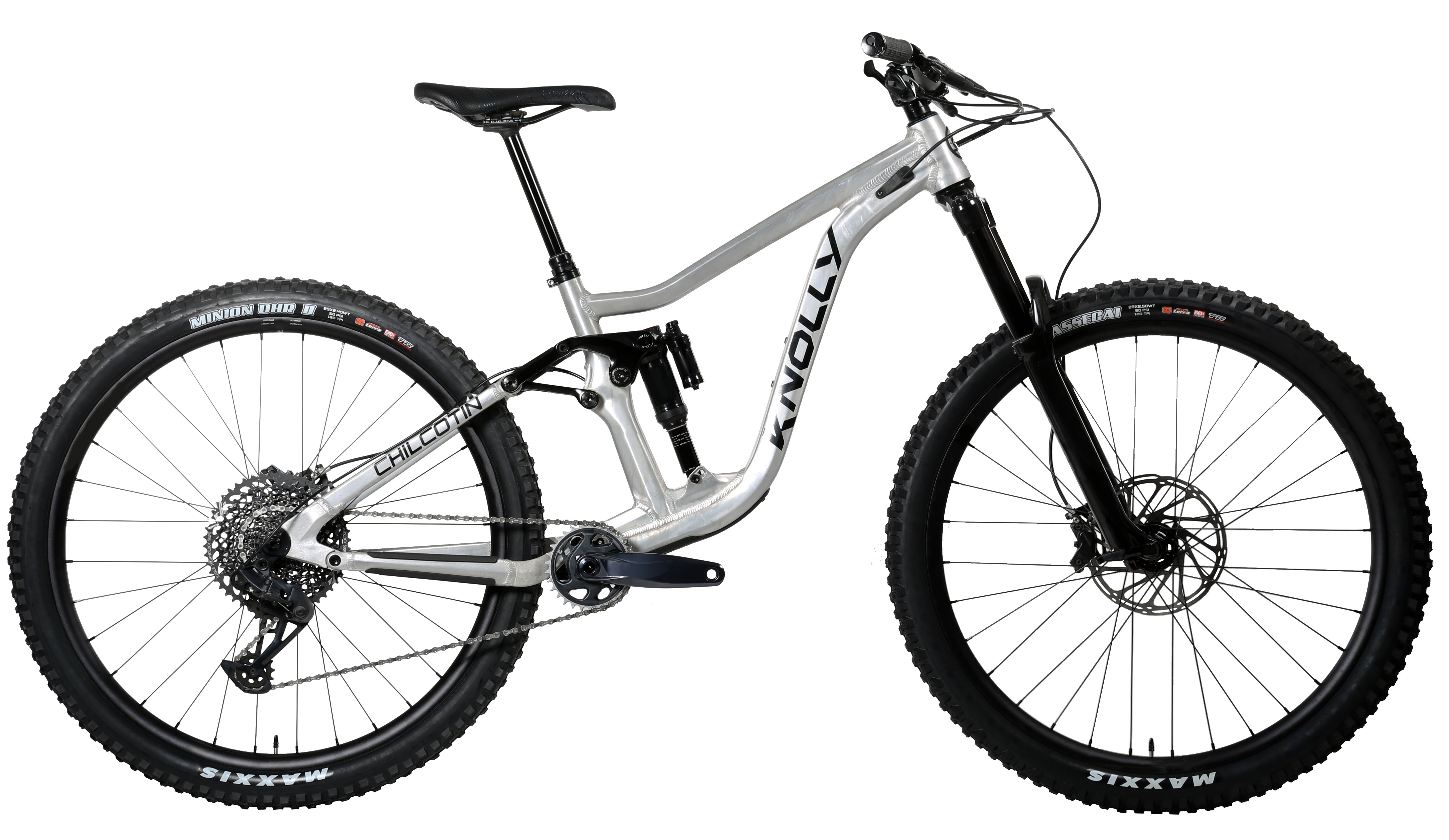

**photo not to spec

Color Raw
Build Kit + Rear Shock

Complete bikes ship unassembled & require a full build. Spec is subject to change without notice. If you have any questions, contact us at


S155cm - 170cm
M170cm - 178cm
L178cm - 188cm
XL188cm - 195cm


Head tube length98mm106mm110mm
Stand over height710mm750mm790mm
Seat tube length405mm456mm503mm
Actual top tube length583mm611mm639mm
Effective top tube length608mm635mm663mm
Wheelbase length1225mm1254mm1282mm
Head angle63.8º64.5º
BB Height338mm347mm
Effective seat tube angle76.9º77.6º
Chainstay length438mm436.5mm


Fork length586mm (inc. headset)
Front travel170mm
Rear travel167mm
Wheel size and max width29" x 2.6"
Dropout/Hub spec12 x 157mm
Seat post diameter31.6mm
Seat post inner depth300mm+
Dropper post rangeSize Medium: 175mm drop; Size Large and XL 175mm - 200+mm drop
Headset44mm upper & 56mm lower
Post collar35mm
Frame material6066 Aluminum, Custom Titanium Hardware
Cable routingInternal with Di2 battery compartment
Upper chain guide mountE-type direct mount (removable)
Chainguide tabsISCG05 (removable)
BB shell spec73mm / threaded
Chainline55-57 with 56.5mm optimal
Rear brake tabsPost mount 160mm
Geo settingsSlack or Neutral
Bottle mountsYes

Build kits

ForkFox 38 29" Grip2 Performance Elite 170mm, 44mm offset
Rear shockRockShox Super Deluxe Ultimate Air OR Coil RCT '22 205x65, CL RM
HeadsetFSA Orbit ZS44/56
StemRaceFace Aeffect R 35mm x 40mm
Handlebar RaceFace Aeffect R 35x780mm, 20mm Rise
GripsSpank / SDG
BrakeShimano Deore 4 Piston M6120
RotorsShimano SLX 203mm / 180mm (6-Bolt) SM-RT66
ShifterShimano Deore 12spd M6100 (I-Spec EV)
Seat collarKnolly
SaddleSDG Bel-Air V3
CranksetShimano Deore M6120 30T, 170mm
Bottom bracketShimano XT MT800 BSA
DerailleurShimano Deore M6100 12spd, Shadow Plus
CassetteShimano Deore M6100 12spd, 10-51T, Hyperglide+
ChainShimano Deore M6100
Wheelset DT Swiss M1900 SPLINE 28h Straight-Pull (MS)
Front tireMaxxis Assegai 29" 2.5WT 3C MaxxGrip EXO+
Rear tireMaxxis DHR2 29" 2.4" 3C MaxxTerra EXO+
